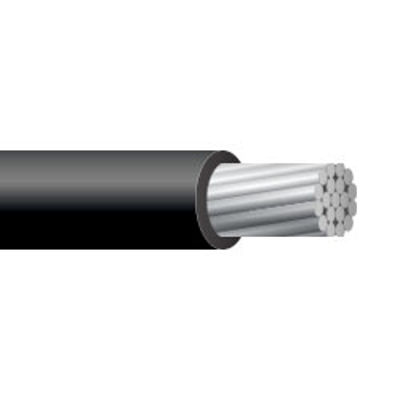

600 MCM XHHW-2 Aluminum Building Wire 600 V,  500ft or 1000ft Spool

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft. Spool
1000 ft. Spool
Add a length

 Free Shipping on all orders over $1000

600 MCM XHHW-2 Aluminum Building Wire, 500ft or 1000ft Spool

SKU
XHWAL600

Product Details

Learn everything you want to know about this product to make an informed purchase

Also available by the foot.  Please click here for pricing.

600 MCM XHHW-2 Aluminum Building Wire 600 V,  500ft or 1000ft Spool

Application:
XHHW-2 are primarily used in air duct, conduit or recognized raceways for services, feeders and branch circuit wiring as specified in the National Electrical Code.

Applicable Standards:
- UL 44
- ASTM standards B800 and B801

Conductor:
Compact stranded aluminum alloy 8000 series per ASTM B-801

Insulation:
UL recognized cross-linked polyethylene

Specifications*:

Size: 600 MCM
Number of Strands: 58
Insulation Thickness: 0.080 inches
Outside Diameter: 0.973 inches
Weight: 0.660 lbs per ft
Ampacity: 385 Amps at 90°C

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Cable TypeXHHW-2
Type of StructureResidential, Commercial, Industrial
Wire Size600 MCM
# of Conductors1 Conductor
O.D. (Inches)0.973
Ampacity385
Voltage600V
Temp. Rating90°C
Insulation MaterialXLPE - Cross-linked Polyethylene
Direct BurialNo
Sunlight ResistantYes
Location UseWet, Dry
Indoor/Outdoor UseIndoor, Outdoor
ApplicationsGeneral purpose wiring for lighting & power
StandardsUL Listed, c(UL) Listed, RoHS Compliant
FeaturesWater Resistant, Oil & Gas Resistant, Heat Resistant, Moisture Resistant
