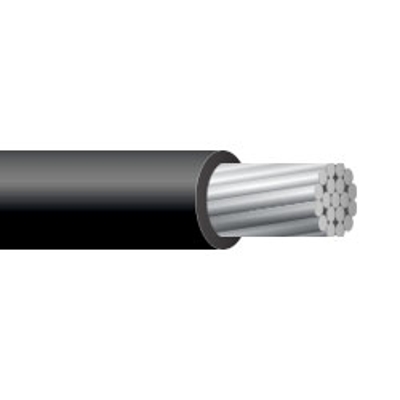

600 MCM XHHW-2 Aluminum Building Wire

SKU XHWAL600

$

4.288180

4.288180

/ft
How will you purchase this wire?
4.288180 4.288180
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

.... ....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

600 MCM XHHW-2 Aluminum Building Wire

Color Length (ft.) Price
N/A

Length (ft.)

$4.29
add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
$2,144.09
Black Length 1000 ft.
$4,288.18
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Cable Type

    XHHW-2

  • Type of Structure

    Residential, Commercial, Industrial

  • Wire Size

    600 MCM

  • # of Conductors

    1 Conductor

  • O.D. (Inches)

    0.973

  • Ampacity

    385

  • Voltage

    600V

  • Temp. Rating

    90°C

  • Insulation Material

    XLPE - Cross-linked Polyethylene

  • Direct Burial

    No

  • Sunlight Resistant

    Yes

  • Location Use

    Wet, Dry

  • Indoor/Outdoor Use

    Indoor, Outdoor

  • Applications

    General purpose wiring for lighting & power

  • Standards

    UL Listed, c(UL) Listed, RoHS Compliant

  • Features

    Water Resistant, Oil & Gas Resistant, Heat Resistant, Moisture Resistant

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Also available by the spool.  Please click here for pricing.

600 V Aluminum Alloy Conductor, UL recognized cross-linked Polyethylene Insulated Wire

Application:
XHHW-2 are primarily used in air duct, conduit or recognized raceways for services, feeders and branch circuit wiring as specified in the National Electrical Code.

Applicable Standards:
- UL 44
- ASTM standards B800 and B801

Conductor:
Compact stranded aluminum alloy 8000 series per ASTM B-801

Insulation:
UL recognized cross-linked polyethylene

Specifications*:

Size: 600 MCM
Number of Strands: 58
Insulation Thickness: 0.080 inches
Outside Diameter: 0.973 inches
Weight: 0.660 lbs per ft
Ampacity: 385 Amps at 90°C

*Data provided on this page is subject to change based on different manufacturers variances.
