Stage Lighting Cable. Cut to length - sold by the Foot.

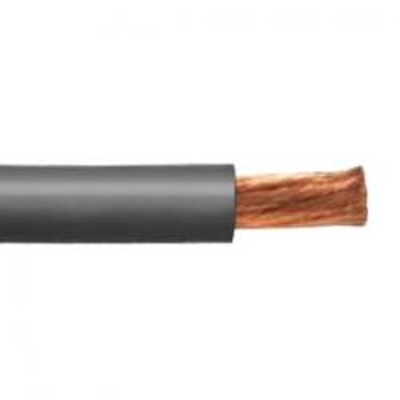

6 AWG Stage Lighting Cable UL/CSA
Product DetailsLearn everything you want to know about this product to make an informed purchase
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 490'. Please call for longer put ups.
Portable power systems. Entertainment industry activities such as theater, television, night clubs, motion pictures, mobile communication vans, spotlights and sound systems. Other similar applications that would require temporary power.
Water-resistant. Sunlight-resistant. Designed to withstand severe environmental conditions. Withstands exposure to oil, acids, alkalies, heat, flame, moisture and chemicals. Meets or exceeds flame test requirements of MSHA, CSA and UL.
Temperature range: -50ºC to +105ºC
Fully annealed stranded bare copper per ASTM B-172
Size: 6 AWG
Conductor Strand: 259/30
Outside Diameter: 10.92 mm / 0.430 inches
Weight: 0.105 lbs per ft
What is the ampacity of 4 AWG Stage Lighting Cable? 105 Amps
*Data provided on this page is subject to change based on different manufacturers variances.
|Wire Size||6 AWG|
|# of Conductors||1 Conductor|
