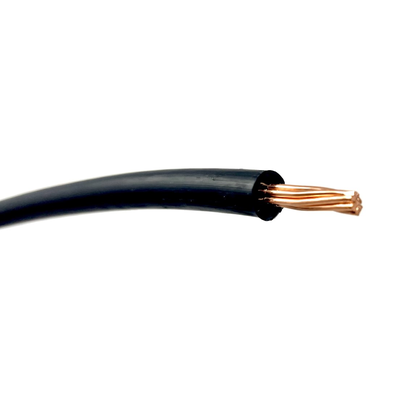

6 AWG Cathodic Protection Cable, 7 STR, HMWPE, 250ft, 500ft or 1000ft Spool

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
250 ft.
500 ft.
1000 ft.
1500 ft.
Add a length

 Free Shipping on all orders over $1000

6 AWG Cathodic Protection Cable, 7 STR, HMWPE, 250ft, 500ft or 1000ft Spool

SKU
CPC6

Product Details

Learn everything you want to know about this product to make an informed purchase

6 AWG Cathodic Protection Cable, 7 STR, HMWPE, 250ft, 500ft or 1000ft Spool

Applications:
Cathodic Protection Cable is used for direct earth burial DC feeder cable for cathodic protection systems, storage tanks, pipelines, wells, ocean vessels, and metallic structures buried or water submerged.


Standards:
2.1 ASTM B-1, B-3, B-8, B-33, B-172,and B-173 for soft drawn annealed copper conductors 2.2 ASTM D-1248, NEMA WC-5, ICEA S-61-402 for High Molecular Weight Polyethylene (HMWPE). 2.3 UL 83, UL 1581 and UL 2556

Conductors:
Single stranded copper conductors per UL83 and ASTM requirements.

Insulation:
The conductor shall be insulated with black, sunlight resistant polyethylene complying with the physical and electrical properties per ASTM D-1248, Type I, Class A thru D, Cat 4, and Grades E4-E5. Types II, III, and IV are available on request. The insulation shall be concentrically applied and the minimum at any point shall not be less than 90% of the specified average thickness. Rated at 75°C, 600 volts.

Specifications*:

Size: 6 AWG
Number of Strands: 7
Voltage: 600V
Temp: 75°C
Insulation Thickness: 0.110 inches
Outside Diameter: 0.40 inches
Weight: 0.122 lbs per ft



*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size6 AWG
# of Conductors1 Conductor
O.D. (Inches)0.4
