6 AWG 2 Conductor Type W Magnet Crane Cable 2kv

SKU
TWMC62C-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

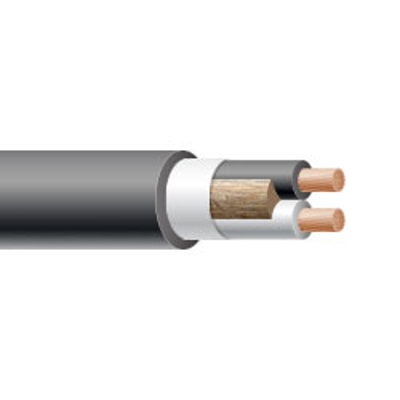

Magnet Crane Cable, 2KV, Type W, Two Conductor, 600-2000 Volts

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 10' to maximum 1000'. Please call for longer put ups.

Color:
Black

Applications:
Type W Magnet Crane Cable is recommended for use where high flexibility and durability is needed. Ideal applications include magnet cranes, drills and pumps and heavy duty service power supply. Excellent resistance against abrasion, oils and solvents. May be direct buried or submerged in water.

Compliances:
- UL Listed as Type W
- Conductors are manufactured in accordance with ASTM and B-33
- Insulation are manufactured in accordance with ASTM and D-2801
- NEMA WC-58 - Portable and Power Feeder Cables for Use in Mines and Similar Locations
- ICEA S-95-658/ NEMA WC-70: Nonshielded Power Cables Rated 2000 Volts or Less
- MSHA accepted, P-184
- Meets FT-4 Flame Test

Conductor:
Tinned annealed stranded bare copper per ASTM B-33.

Insulation:
EPR Ethylene-Propylene Rubber

Jacket:
CPE rubber jacket.

Specifications*:

Size: 6 AWG
Number of Conductors: 2
Conductor Strand: 133
Nominal Insulation Thickness: 0.060 inches
Outside Diameter: 0.960 inches
Current AMPS: 99
Net Weight: 0.518 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size6 AWG
# of Conductors2 Conductors
O.D. (Inches)0.96 in.
Ampacity 99
