    6/4 Yellow Flat Festoon Cable (PVC)

    SKU
    FFC6s4

    /ft.

    /ft.

    11.560000 11.560000

    How will your purchase this wire?

    By the Foot Choose an exact length (1 - 10,000ft)
    By the Spool Save Choose standard spool sizes (500 | 1000 | 2500ft)

     Free Shipping on all orders over $1000

    Min: 1 ft. |  Max: 10000 ft. 1 10000 To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

    Multiple colors can be selected

    ....

    Quantity

    Select your preferred quantity for each color below. Add additional colors and lengths as needed.

    Grouped product items
    COLORLENGTH (FT.)Price
    Yellow
    $11.56
    +Add a length

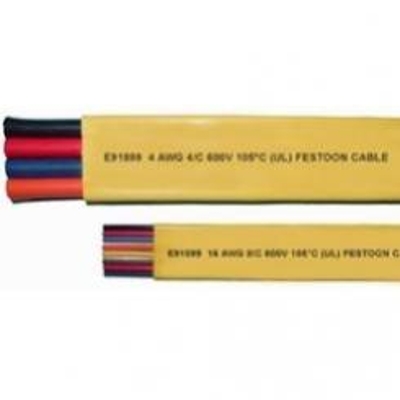

    main product photo

    Product Details

    Learn everything you want to know about this product to make an informed purchase

    Cut to length - sold by the foot. Enter the desired footage in the QTY box.
    Minimum 1 ft. to maximum 1000 ft. Please call for longer put ups.

    Color:
    Yellow

    Applications:
    Flat Festoon Cable (PVC) is designed for coninuous flexing applications including festooning systems, cranes, hoists, track systems, conveyors & robots.

    Features:
    Oil and chemical resistant.  UV resistant. High flexibility. Small bending radius.  UL Listed and CSA Certified for indoor and outdoor use. -40°C-105°C

    Standards:
    UL VW-1
    UL/CSA Certified

    Jacket Material:
    PVC - Polyvinyl Chrloride

    Conductor Material:
    Bare Copper

    Specifications*:

    Size: 6 AWG
    Number of Conductors: 4
    Conductor Strand: 259
    Outside Diameter: 0.450 x 1.500 inches
    Weight: 0.635 lbs per ft
    Voltage: 600V



    *Data provided on this page is subject to change based on different manufacturers variances.

    More Information
    StockedYes
    Jacket ColorYellow
    Cable TypeFlat Festoon Cable
    Wire Size6 AWG
    # of Conductors4 Conductors
    Conductor MaterialBare Copper
    O.D. (Inches)0.450 x 1.500 in.
