$7.80 /ft.

In Stock

6-3C w/ 3 #12 Grounds Shielded VFD Cable - sold by the Foot.

Min: 10 ft., Max: 2500 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

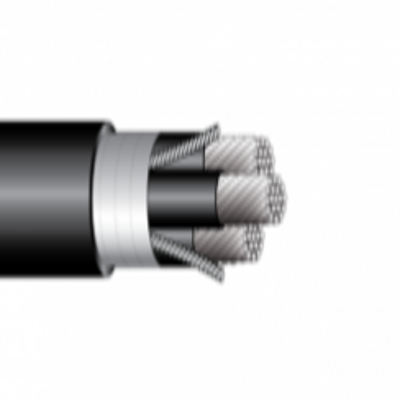

6-3C w/ 3 #12 Grounds Shielded VFD Cable

SKU
VFD63C3G-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

XLP Insulation, PVC Jacket, 600/1000V UL Type TC-ER, 90°C

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 1000'. Please call for longer put ups.

Applications:
A flexible, shielded power cable specifically engineered for use in variable frequency AC motor drive (VFD) applications.

Conductor:
Stranded tinned copper circuit conductors

Insulation:
Crossed-linked polyolefin (XLPO), flexible and low dielectric

Jacket:
Black polyvinyl chloride (PVC) that is sunlight, moisture, oil and abrasion resistant and direct burial rated, for use from -40C to 90C.

Shield:
Aluminum polyester & 85% tinned copper braid shield

Grounding Conductor:
3 Stranded tinned copper conductors

Compliances:
UL 1277, Type TC-ER, Type XHHW-2
UL approved as 1000V flexible motor supply cable
UL listed as VFD or WTTC per UL 2277 for Flexible Motor Supply and Wind Turbine Tray Cables
CSA FT-4 Vertical tray flame test
CSA AWM I/II A/B singles
C(UL) CIC-TC per CSA standard C22.2 No. 239-09 & 230-09
CSA Type AWM per CSA standard C22.2 No. 210-11
Meets UL 1202/1583 70,000 BTU flame test
Meets ICEA T-29-520 210,000 BTU flame test
Suitable for use in Class I Division II hazardous locations
90C DRY/WET
RoHS II & REACH compliant

Specifications*:

Size: 6 AWG
Number of Conductors: 3
Conductor Strand: 133
Insulation Thickness: 0.040 inches
Ground Wire: 12 AWG x 3
Jacket Thickness: 0.080 inches
Outside Diameter: 0.854 inches
Weight: 0.517 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size6 AWG
O.D. (Inches)0.854
