$5.47 /ft.

In Stock

Bus Drop Multiconductor Cable. Cut to length - sold by the Foot.

Min: 25 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

6/3C Bus Drop Cable

SKU
BUS6s3C-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

2000V, 75°C (-20°C), Resistant to oils, lubricants, acids, alkalies, ozone, water and abrasion.

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.

Color:
Gray

Applications:
Bus Drop Cable is intended for use in indoor or outdoor applications for connection of stationary or portable equipment to facilitate relocation of equipment. Rated for indoor and outdoor use in wet or dry locations.

Compliances:
- OSHA acceptable
- RoHS Compliant
- UL Listed
- -20°C to 75°C - #14-#8
- -20°C to 60°C - #6-#2

Conductor:
Fully annealed stranded bare copper per ASTM B-8 or ASTM B-172.

Insulation:
Premium grade PVC

Construction:

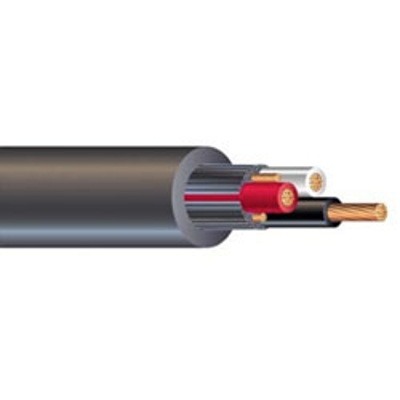

The conductors are insulated with Premium-grade, PVC insulation with a clear nylon jacket and are colored black, white, and red. The conductors and ground wires along with paper or polypropylene fillers are cabled for flexibility then wrapped with a mylar separator to aid strippability. The cable is covered with a gray PVC jacket.

Specifications*:

Size: 6 AWG
Number of Conductors: 3
Conductor Strand: 19
CGround Wires: 3 x 14
Nominal Insulation Thickness: 0.060 inches
Nominal Jacket Thickness: 0.060 inches
Outside Diameter: 0.794 inches
Ampacity: 55
Net Weight: 0.511 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Cable TypeBus Drop Cable
# of Conductors3 Conductors w/ 3 Grounds
Conductor MaterialBare Copper
O.D. (Inches)0.794
Ampacity 55
Jacket ColorBlack
