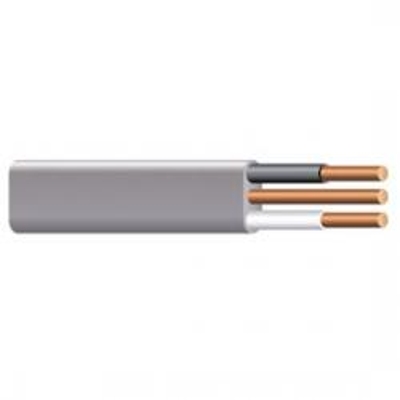

6/2 UF-B Wire w/ Ground 125', 250', 500' or 1000ft Coil

SKU UFB62WG

$

3.260000

3.260000

/ft
How will you purchase this wire?
3.260000 3.260000
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

125 250 500 1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

6/2 UF-B Wire w/ Ground 125', 250', 500' or 1000ft Coil

Grouped product items
Color Length (ft.)
Gray Length 125 ft.
$407.50
Gray Length 250 ft.
$815.00
Gray Length 500 ft.
$1,630.00
Gray Length 1000 ft.
$3,260.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Jacket Color

    Gray

  • Cable Type

    Underground Feeder (UF-B)

  • Type of Structure

    Residential, Agriculture

  • Wire Size

    6 AWG

  • # of Conductors

    2 Conductors w/ Ground

  • Ground Size

    10 AWG

  • Conductor Material

    Bare Copper

  • Stranded or Solid

    Stranded

  • Ampacity

    55

  • Voltage

    600V

  • Temp. Rating

    90°C

  • Insulation Material

    PVC - Polyvinyl Chloride

  • Jacket Material

    PVC - Polyvinyl Chloride

  • Direct Burial

    Yes

  • Sunlight Resistant

    Yes

  • Location Use

    Wet, Dry

  • Indoor/Outdoor Use

    Indoor, Outdoor

  • Applications

    Outbuildings, Garages, Barns, Pumps, Lamp Posts, Internal Branch Circuit Wiring

  • Standards

    UL Listed, RoHS Compliant

  • Color Code

    Black, White

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Applications:
Type UF-B cable is generally used as feeder to outside post lamps, pumps, and other loads or apparatus fed from a distribution point in an existing building as specified in the 2011 National Electrical Code. UF-B cable may be used underground, including direct burial. Multiple conductor UF-B cable may be used for interior branch circuit wiring in residential or agricultural buildings at conductor temperatures not to exceed 90°C (with ampacity limited to that for 60°C conductors) as specified by the National Electrical Code. UF-B can be used in applications permitted for NMC in Section 334.10(B) of the National Electrical Code. Voltage rating for UF-B cable is 600 volts.

Standards:
ASTM - B3 and B-8
UL Standard 83
UL Standard 493
Federal Specification A-A-59544
National Electrical Code, NFPA 70, 2011 Edition
RoHS/ REACH

Construction:

Conductors:
Stranded annealed soft bare copper per ASTM B3 and ASTM B8.

Insulation:
Polyvinyl chloride (PVC) with a nylon covering.  Color coded phase identification.

Ground:
Soft bare copper, stranded per ASTM B3 and ASTM B8.

Jacket:
Sunlight, moisture and fungus resistant gray PVC.

Specifications*:

Size: 6 AWG
Number of Conductors: 2
PVC Insulation Thickness: 0.035 inches
Ground Wire Size: 10 AWG
Nylon Thickness: 0.005 inches
Nominal Cable Dimensions: .73 inches x .338 inches
Weight per foot: 0.303 lbs
Allowable Ampacity: 55 Amps

*Data provided on this page is subject to change based on different manufacturers variances.
