$24.13 /ft.

In Stock

5kV/15kV Portable Jumper Cable. Cut to length - sold by the Foot.

Min: 10 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

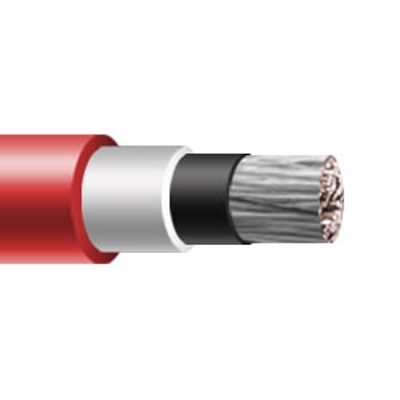

500 MCM Jumper Cable Red 5kV/15kV

SKU
JCR500-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 10' to maximum 1000'. Please call for longer put ups.

Color:
Red.

Applications:
Suitable as a flexible power lead for temporary connections and other industrial applications.

Features:
Excellent resistance to oil and weather. Excellent flexibility. Water-resistant. Sunlight-resistant. Temperature range: -40ºC to +90ºC

Standards:
ICEA S-97-682
ICEA S-75-381/NEMA WC-58
ASTM B172
ASTM B 33
UL 1072

Construction:
Conductors:
Flexible strand tin coated copper, ASTM B-172 and ICEA S-75-381
Separator:
Synthetic semi-conducting tape separator between the conductor and insulation
Insulation:
Ethylene-propylene rubber (EPR), UL 1072
Jacket:
Red heavy duty CPE thermoset compound, ICEA S-75-381 sec 3.22

Specifications*:

Size: 500 MCM
Conductor Strand: 1921x0.159
Insulation Thickness: 0.175 inches
Jacket Thickness: 0.080 inches
Outside Diameter: 1.410 inches
Weight: 2.058 lbs per ft
Amps 40ºC: 678

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size500 MCM
# of Conductors1 Conductor
O.D. (Inches)1.41
Ampacity 678
