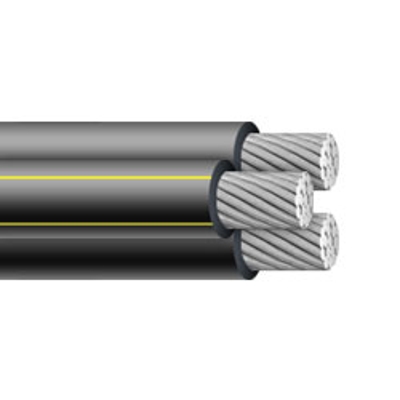

Learn everything you want to know about this product to make an informed purchase500, 500, & 350 Underground Secondary Distribution Cable
Color:
Black.
Description:
Underground Secondary Distribution Cables are twisted assemblies of alloy 1350 aluminum conductors insulated with cross-linked polyethylene. THey are used in various underground applications in secondary distribution circuits.
Conductor:
Compressed Class B compressed stranded, 1350 series aluminum alloy.
Insulation:
Black cross-linked polyethylene (XLPE)
Assembly:
Phase conductors and neutral conductors are cabled together to form a twisted assembly.
Applicable Standards:
- UL 854: Service ENtrance Cables
- ICEA S-105-692 Standard for 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables
500, 500, & 350 Triplex URD Cable Specifications*:
Phase Conductor-Size: 500 MCM
Conductor Strand: 37
Neutral Conductor-Size: 350 MCM
Conductor Strand: 37
Insulation Thickness: 0.095 inches
Outside Diameter: 1.785 inches
Allowable Ampacity-Direct Burial: 495 Amps at 90°C
Allowable Ampacity-In-Duct: 395 Amps at 90°C
Weight: 1.563 lbs per ft
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Cable Type | URD |
Wire Size | 500 MCM |
# of Conductors | 3 Conductors |
Conductor Material | Aluminum |
Stranded or Solid | Stranded |
O.D. (Inches) | 1.785 |
Ampacity | 495 |
Voltage | 600V |
Insulation Material | XLPE - Cross-linked Polyethylene |
Direct Burial | Yes |
Sunlight Resistant | Yes |
