$103.50
In Stock

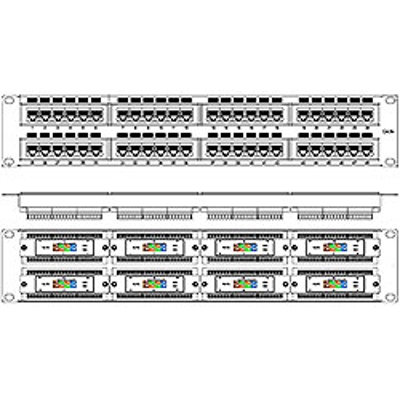

Cat6e 48 Ports Patch Panel
Product Details
Learn everything you want to know about this product to make an informed purchaseCat6 48 Ports Patch Panel
Electrical:
Voltage Rating: 125 VAC RMS
Current Rating: 1.5 AMP
Contact Resistance: 100 milliohms (max)
Insulation Resistance: 1000 megohms min @ 500 VDC
Dielectric Strength: 750 VAC RMS 60Hz, 1 min
Environmental:
Storage: -40 - +85 degree / C
Operation: 0 - +70 degree / C
Conform to TIA/EIA 568A Category 6e
Mates with modular plug conforming to FCC Part 6B Subpart F
Mechanical:
Housing Material: PBT+15%GF UL 84V-O
Panel Frame: Carbon Steel, Powder Coating in Black Color
IDC Material: PC UL 94V-O
Contact: Phosphor Bronze with Nickel Plating
| Stocked | Yes |
|---|
