$1,890.00 /sp.

In Stock

400 MCM XHHW-2 Aluminum Building Wire 600 V,  500ft or 1000ft Spool

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft. Spool
1000 ft. Spool
Add a length

 Free Shipping on all orders over $1000

400 MCM XHHW-2 Aluminum Building Wire, 500ft or 1000ft Spool


Product Details

Learn everything you want to know about this product to make an informed purchase

Also available by the foot.  Please click here for pricing.

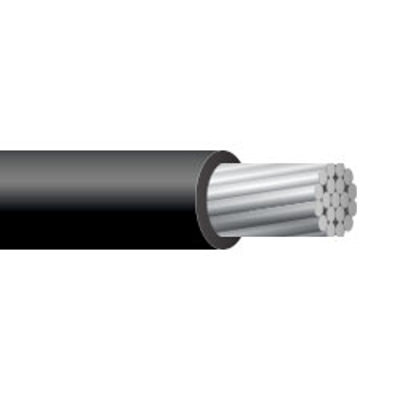

400 MCM XHHW-2 Aluminum Building Wire 600 V,  500ft or 1000ft Spool


XHHW-2 are primarily used in air duct, conduit or recognized raceways for services, feeders and branch circuit wiring as specified in the National Electrical Code.

Applicable Standards:
- UL 44
- ASTM standards B800 and B801

Compact stranded aluminum alloy 8000 series per ASTM B-801

UL recognized cross-linked polyethylene


Size: 400 MCM
Number of Strands: 35
Insulation Thickness: 0.065 inches
Outside Diameter: 0.789 inches
Weight: 0.439 lbs per ft
Ampacity: 305 Amps at 90°C

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Cable TypeXHHW-2
Type of StructureResidential, Commercial, Industrial
Wire Size400 MCM
O.D. (Inches)0.789
Temp. Rating90°C
Insulation MaterialXLPE - Cross-linked Polyethylene
Direct BurialNo
Sunlight ResistantYes
Location UseWet, Dry
Indoor/Outdoor UseIndoor, Outdoor
ApplicationsGeneral purpose wiring for lighting & power
StandardsUL Listed, c(UL) Listed, RoHS Compliant
FeaturesWater Resistant, Oil & Gas Resistant, Heat Resistant, Moisture Resistant
