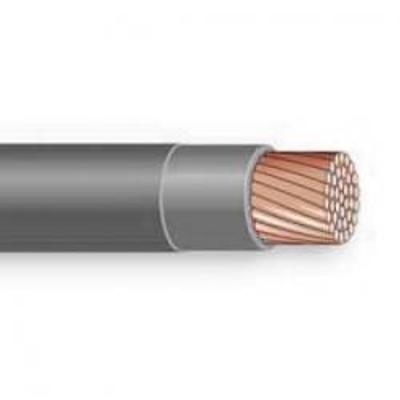

400 MCM, Type MTW/UL1284 Wire, 3951 Strand

SKU MTW400
How will you purchase this wire?
20.710000 20.710000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

400 MCM, Type MTW/UL1284 Wire, 3951 Strand

Color Length (ft.) Price
Black

Length (ft.)

add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Cable Type

    MTW - Machine Tool Wire

  • Wire Size

    400 MCM

  • # of Conductors

    1 Conductor

  • Conductor Material

    Bare Copper

  • Insulation Material

    PVC - Polyvinyl Chloride

  • Direct Burial

    No

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Cut to length - sold by the foot.
Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put-ups.
1000 FT minimum for stripe.

Color:
Black

Applications:
Type conductors are primarily used in control cabinets, machine tool applications, and appliance wiring applications. Type MTW conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Type AWM conductor is appropriate for use at temperatures not exceeding 105°C in dry locations.

Bare Copper Stranding:
400 MCM (253mm²) E137733 (UL) MTW OR THHW FOR CT USE OR AWM STYLES 1284 & 1339 600V OR 10269 1000V SUN RES VW-1 -- 156016 CSA AWM I A/B 105C 600V FT1

Specifications*:

Size: 400 MCM
Number of Strands: 3951
Temp: 90°C

*Data provided on this page is subject to change based on different manufacturers' variances.
