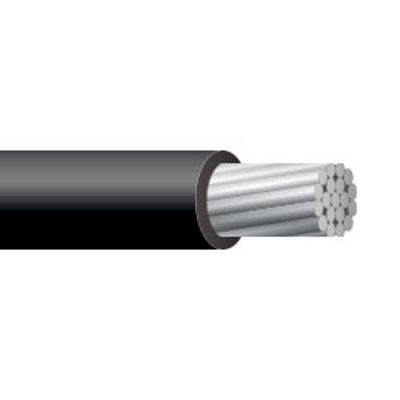

600 V Aluminum Alloy Conductor, UL recognized cross-linked Polyethylene Insulation XLPE
Product Details
Learn everything you want to know about this product to make an informed purchasePlease call 855-880-8010 for shorther lengths
Rated for Direct Burial
600 V Aluminum Alloy Conductor, UL recognized cross-linked Polyethylene Insulation XLPE
Application:
USE-2 cables are primarily used for power distribution, in raceways in accordance with National Electrical Code, except that the cable is not rated for use in cable tray. USE-2 is approved for direct burial and for service entrance below ground. USE-2 cables may be used in wet or dry locations, with ambient temperatures not exceeding 90°C. Voltage rating for USE-2 cable is 600V
Applicable Standards:
USE-2 meets or exceeds the following standards
UL 44
Requirements of the National Electrical Code
ASTM standards B 800, B 801
Sunlight resistant
Conductor:
USE-2 conductor is a compact soft drawn bare 8000 series aluminum, with Class B stranding per ASTM
USE-2 has abrasion, heat and moisture resistant cross-linked polyethylene insulation XLPE
Specifications*:
Size: 4 AWG
Number of Strands: 7
Insulation Thickness: 0.060 inches
Outside Diameter: 0.336 inches
Weight: 0.065 lbs per ft
Ampacity: 65 Amps at 30°C
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Cable Type | XLP/USE-2 or RHH/RHW-2 |
Wire Size | 4 AWG |
# of Conductors | 1 Conductor |
Conductor Material | Aluminum |
Stranded or Solid | Stranded |
O.D. (Inches) | 0.336 |
Ampacity | 65 |
Voltage | 600V |
Temp. Rating | -40°C ~ 90°C |
Insulation Material | XLPE - Cross-linked Polyethylene |
Direct Burial | Yes |
Sunlight Resistant | Yes |
Location Use | Wet, Dry |
Indoor/Outdoor Use | Indoor, Outdoor |
Standards | UL Listed, RoHS Compliant |
Features | Sunlight Resistant, Water Resistant, Oil & Gas Resistant, Heat Resistant, Moisture Resistant |
