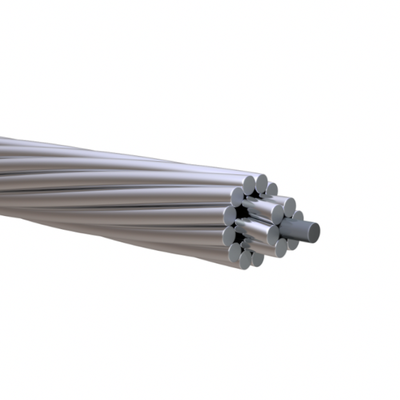

4 AWG Swanate ACSR Aluminum Conductor Steel Reinforced
Product Details
Learn everything you want to know about this product to make an informed purchase4 AWG Swanate ACSR Aluminum Conductor Steel Reinforced
Application:
This wire is suitable for use in all practical spans on wood poles, transmission towers, and other structures. Applications range from long, extra high voltage (EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises.
ACSR (aluminum conductor steel reinforced) has a long service record because of its economy, dependability, and strength to weight ratio. The combined light weight and high conductivity of aluminum with strength of the steel core enables higher tensions, less sag, and longer spans than any alternative.
Applicable Standards:
- ASTM B-232: Concentric Lay Aluminum Conductors
- ASTM B-230: Aluminum 1350-H19 Wire for Electrical Purposes
- ASTM B-498: Zinc Coated (Galvanized) Steel Core Wire for ACSR
Construction:
A solid or concentric stranded central steel core is surrounded by one or more layers of concentric stranded aluminum alloy 1350. The wire is protected from corrosion with a zinc coating.
Specifications*:
Size: 4 AWG
Number of Strands (Alum/Steel): 7/1
Outside Diameter: 0.257 inches
Weight: 0.067 lbs per ft
Rated Strength (lb/ft): 2360
Resistance OHMS/1000 ft. AC @ 75C: 0.5190
Ampacity: 140 Amps
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Wire Size | 4 AWG |
# of Conductors | 1 Conductor |
O.D. (Inches) | 0.257 |
Ampacity | 140 |
