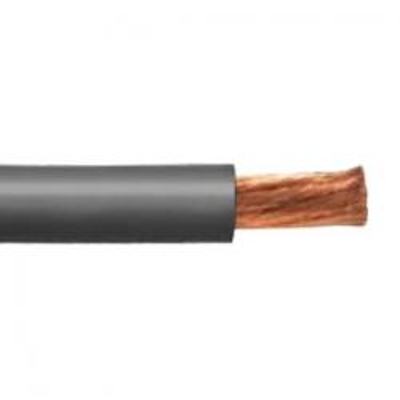

4 AWG Stage Lighting Cable UL/CSA

SKU SLC4

$

2.650000

2.650000

/ft
How will you purchase this wire?
2.650000 2.650000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

4 AWG Stage Lighting Cable UL/CSA

Color Length (ft.) Price
Black

Length (ft.)

$2.65
add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
$1,325.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    4 AWG

  • # of Conductors

    1 Conductor

  • O.D. (Inches)

    0.475

  • Ampacity

    140

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.

Color:
Black

Applications:
Portable power systems. Entertainment industry activities such as theater, television, night clubs, motion pictures, mobile communication vans, spotlights and sound systems. Other similar applications that would require temporary power.

Features:
Water-resistant. Sunlight-resistant. Designed to withstand severe environmental conditions. Withstands exposure to oil, acids, alkalies, heat, flame, moisture and chemicals. Meets or exceeds flame test requirements of MSHA, CSA and UL.

Jacket:
Temperature range: -50ºC to +105ºC

Standards:
UL Listed
CSA Certified
RoHS Compliant

Conductor:
Fully annealed stranded bare copper per ASTM B-172

Specifications*:

Size: 4 AWG
Conductor Strand: 418/30
Outside Diameter: 12.07 mm / 0.475 inches
Weight: 0.215 lbs per ft

What is the ampacity of 4 AWG Stage Lighting Cable?  140 Amps

*Data provided on this page is subject to change based on different manufacturers variances.
