4 AWG SRML Wire, High Temperature Motor Lead Wire, UL 3071

Min: 10 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

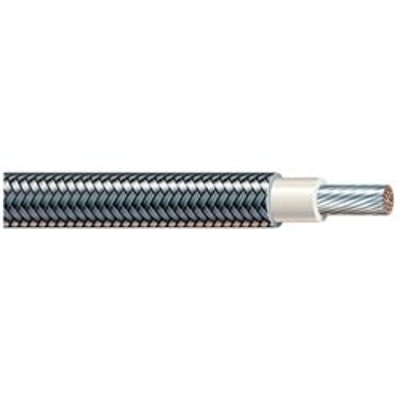

4 AWG SRML Wire, High Temperature Motor Lead Wire, UL 3071, 200C

SKU
SRML4-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 10' to maximum 1000'. Please call for longer put-ups.

Application:
SRML Wire is a high temperature wire used when high temperatures and abrasive environments are present. 6 AWG SRML Wire is suitable for use in 600V applications up to 150°C.

 Applicable Standards:

- Sizes 4-4/0 meet the UL requirements for Styles 3071, 3074, 3075, 3125, 3172, 3231 (200°C)
- CSA requirements for SEW-2 (200°C)

Conductor:
Tinned, annealed copper per ASTM B-33, Class H stranded per ASTM B-173 or Class K stranded per ASTM B-174

Insulation:
Silicone rubber

Jacket:
Fiberglass braid with a high temperature finishing

Specifications*:

Size: 4 AWG
Number of Strands: 133
Insulation Thickness: 0.063 inches
Braid Thickness: 0.012 inches
Outside Diameter: 0.419 inches
Weight: 0.184 lbs per ft
Ampacity per Conductor: 124 Amps
Voltage: 600 Volts
Max Temp: 200C

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Cable TypeSRML
Wire Size4 AWG
# of Conductors1 Conductor
Conductor MaterialTinned Copper
Stranded or Solid Stranded
Number of Strands133
O.D. (Inches)0.419
Ampacity 125
Voltage600V
Temp. Rating200°C
Insulation MaterialSilicone Rubber
Jacket MaterialFiber Glass Braid
UL StyleStyle 3071
StandardsUL Listed, CSA Certified
