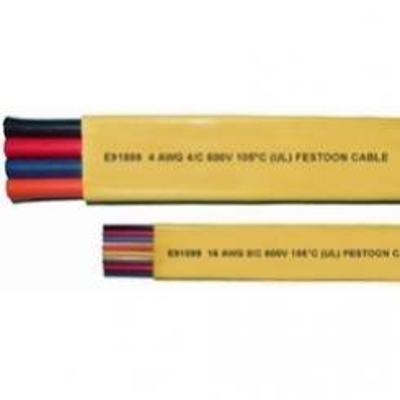

4/4 Yellow Flat Festoon Cable (PVC)



Material Due Date: July 2024

Min: 10 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

4/4 Yellow Flat Festoon Cable (PVC)

SKU
FFC4s4-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1 ft. to maximum 1000 ft. Please call for longer put ups.

Color:
Yellow

Applications:
Flat Festoon Cable (PVC) is designed for coninuous flexing applications including festooning systems, cranes, hoists, track systems, conveyors & robots.

Features:
Oil and chemical resistant.  UV resistant. High flexibility. Small bending radius.  UL Listed and CSA Certified for indoor and outdoor use. -40°C-105°C

Standards:
UL VW-1, CSA FT4
UL/CSA Certified

Jacket Material:
PVC - Polyvinyl Chrloride

Conductor Material:
Bare Copper

Specifications*:

Size: 4 AWG
Number of Conductors: 4
Conductor Strand: 413
Insulation Thickness: 0.045 inches
Outside Diameter: 0.515 x 1.750
Weight: 0.896 lbs per ft
Voltage: 600V



*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Cable TypeFlat Festoon Cable
Wire Size4 AWG
# of Conductors4 Conductors
Conductor MaterialBare Copper
O.D. (Inches)0.515 x 1.750 in.
Jacket ColorYellow
