$0.69 /ft.

In Stock

4-4 Terrier Aluminum Duplex Overhead Service Drop Cable. Sold by the foot.

Min: 100 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

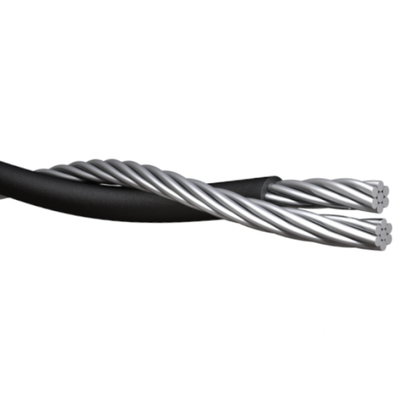

#4-4 Terrier Aluminum Duplex Overhead Service Drop Cable

SKU
OHC44-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - Sold by the foot. Enter the desired footage in the QTY box.

Color:
Black.

Description:
Aluminum Duplex Overhead cable is designed for use to supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75°C maximum.

Conductor:
Aluminum Duplex Overhead cable has a concentric strand or compressed 1350-H19 series aluminum series aluminum conductor.

Messenger:
Aluminum Duplex Overhead cable has a bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.

Insulation:
Aluminum Duplex Overhead cable has a black cross linked polyethylene (XLP) insulation.

Applicable Standards:
ASTM B-230
ASTM B-231
ASTM B-232
ASTM B-399
ICEA S - 76 - 474

Specifications*:

Phase Conductor-Size: 4 AWG
Conductor Strand: 7
Insulation Thickness: 0.045 inches
Neutral Messenger Conductor-Size: 4 AWG
Conductor Strand: 6/1
Outside Diameter: .58 inches
Allowable Ampacity (XLP): 115 Amps
Weight: 0.0115 lbs per ft

*All values are nominal and subject to correction. Ampacity 90°C conductor temperatures, 20°C ambient temperature. RHO 90. 100% load factor for three conductor triplex with neutral carrying only unbalanced load. All yellow extruded stripe cable is XLP insulation. UL Standard 854 available upon request. Ampacity not for NEC applications.

More Information
StockedYes
Cable TypeOverhead Service Drop
Wire Size4 AWG
# of Conductors2 Conductors
Conductor MaterialAluminum
Stranded or Solid Stranded
O.D. (Inches)0.58
Ampacity 115
Voltage600V
Insulation MaterialXLPE - Cross-linked Polyethylene
Sunlight ResistantYes
