2/4/C SOOW Yellow Portable Cord 600V Non UL
/ft.
/ft.
Product Details
Learn everything you want to know about this product to make an informed purchase
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 10 ft. to maximum 159 ft. Please call for longer put-ups.
Color:
Yellow
Applications:
SOOW flexible cord applications include portable tools and equipment, portable appliances, small motors, and associated machinery.
Features:
Excellent resistance to oil and moisture. Good tensile strength, elongation, and aging characteristics. High flexibility. Excellent abrasion resistance. Sunlight-resistant. Temperature range: -40°C to +90°C.
Standards:
MSHA Approved
RoHS Compliant

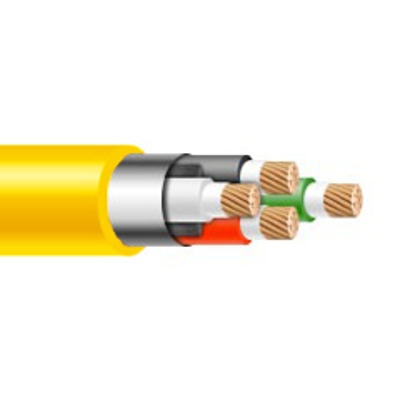

Construction:
Conductors:
18 through 2 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded 90°C EPDM
Specifications*:
Size: 2 AWG
Number of Conductors: 4
Conductor Strand: 119/25
Insulation Thickness: 0.050 inches
Outside Diameter: 1.030 inches
Weight: 0.845 lbs per ft
Current Amps: 60
Color Code Chart:
*Data provided on this page is subject to change based on different manufacturers.
ers variances.| Stocked | Yes |
|---|---|
| Jacket Color | Yellow |
| Wire Size | 4 AWG |
| # of Conductors | 4 Conductors |
| Conductor Material | Bare Copper |
| Stranded or Solid | Stranded |
| O.D. (Inches) | 1.03 |
| Ampacity | 60 |
| Voltage | 600V |
| Temp. Rating | -40°C ~ 90°C |
| Flexibility | High Flexibility |
| Indoor/Outdoor Use | Indoor, Outdoor |
| Shielded | No |
| Standards | RoHS Compliant, MSHA Approved |
| Features | Weather Resistant, Water Resistant, Oil Resistant |
| Color Code | Black, White, Red, Green |
