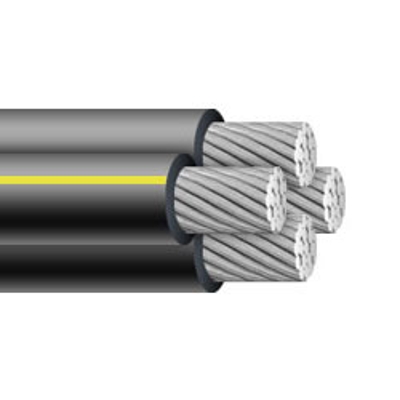

4/0, 4/0, 4/0 & 2/0 Wake Forest Aluminum Quadruplex URD Direct Burial Cable

Min: 10 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

4/0,4/0,4/0 & 2/0 Wake Forest Aluminum Quadruplex URD Direct Burial Cable

SKU
USDQ4s032s0-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

Color:
Black.

Description:
Underground Secondary Distribution Cables are twisted assemblies of alloy 1350 aluminum conductors insulated with cross-linked polyethylene. They are used in various underground applications in secondary distribution circuits.

Conductor:
Compressed Class B compressed stranded, 1350 series aluminum alloy.

Insulation:
Black cross-linked polyethylene (XLPE)

Assembly:
Phase conductors and neutral conductors are cabled together to form a twisted assembly.

Applicable Standards:
- UL 854: Service Entrance Cables
- ICEA S-105-692 Standard for 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables

Specifications*:

Phase Conductor-Size: 4/0 AWG
Conductor Strand: 19
Neutral Conductor-Size: 2/0 AWG
Conductor Strand: 19
Insulation Thickness: 0.080 inches
Outside Diameter: 1.560 inches
Allowable Ampacity-Direct Burial: 290 Amps
Allowable Ampacity-In Duct: 225 Amps
Weight: 1.036 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size4/0 AWG
# of Conductors4 Conductors
Conductor MaterialAluminum
Stranded or SolidStranded
O.D. (Inches)1.56
Ampacity290
Voltage600V
Insulation MaterialXLPE - Cross-linked Polyethylene
Direct BurialYes
Sunlight ResistantYes
