4/0-4/0-4/0-2/0 Aluminum Mobile Home Feeder Cable

Min: 50 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

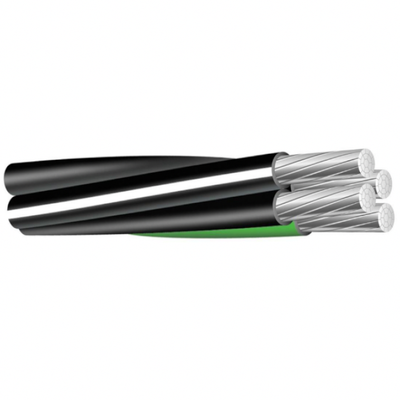

4/0-4/0-4/0-2/0 Aluminum Mobile Home Feeder Cable

SKU
MHF4s02-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

Description:
Aluminum Mobile Home Feeder cable is designed for mobile homes as a service entrance cable. The cable is sunlight resistant and is approved for use in accordance with the recommendations of the National Electric Code in raceways and underground installations. Maximum operating temperature is not to exceed 90°C in wet and dry locations. Voltage rating is 600 volts.

Conductor:
Aluminum Mobile Home Feeder cable has a compact strand soft drawn 8000 series aluminum conductor, per ASTM B-800 & B-801.

Insulation:
Aluminum Mobile Home Feeder cable has a type USE2/RHH/RHW-2 cross linked polyethylene (XLP) insulation. The conductors are cabled together with a green XLP insulted aluminum ground. The grounded (neutral) conductor is identified by a longitudinal white stripe.

Applicable Standards:
Ampacities based on National Electric Code, 2005n edition, section 310-15
UL 44 for types RHH & RHW-2
UL 854 for type USE-2

Specifications*:

Conductor Size: 4/0
Cable Construction: 4/0-4/0-4/0-2/0
Neutral Conductor Size: 4/0
Grounding Conductor Size: 2/0
Voltage: 600V
Allowable Ampacity: 200 Amps
Cable OD: 1.54 inches
Weight: 1.02 lbs per ft

* Ampacities based on CEC Part 1, Table 4 for not more than three conductors in raceway. For underground installations, refer to CEC, Rule 4- 004 for Ampacity rating.

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Cable TypeMobile Home Feeder
Type of StructureResidential
Wire Size4/0 AWG
# of Conductors4 Conductors
Conductor MaterialAluminum
Stranded or Solid Stranded
O.D. (Inches)1.54
Ampacity 200
Voltage600V
Temp. Rating90°C
Insulation MaterialXLPE - Cross-linked Polyethylene
Jacket ColorBlack
Direct BurialYes
Sunlight ResistantYes
StandardsUL Listed
