In Stock
XLP/USE-2 or RHW-2 or RHH 90°C - 600 Volt Stranded Building Wire. Cut to length - sold by the Foot.
Product Details
Learn everything you want to know about this product to make an informed purchaseXLP/USE-2 or RHW-2 or RHH 90°C - 600 Volt Stranded Building Wire. Cut to length - sold by the Foot.
Color:
Black
Description:

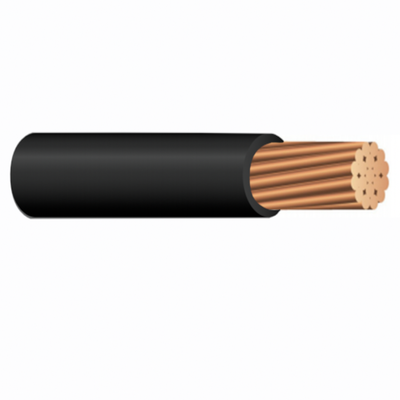

Single copper conductor, stranded, insulated with moisture and heat resistant, chemically cross-linked polyethylene insulation. Temperature rating 90° C in wet and dry applications.available.
Applications:
Types USE-2, RHH/RHW-2 are suitable for use in general purpose wiring applications and may be installed in raceway, conduit, direct burial and aerial installations where a cable having superior flame retardance is required.
Features:
CT use 1/0 and larger Gasoline and Oil resistant Direct Burial/Sunlight resistant.
Temperature Rating -40°C TO 90°C
Standards:
ASTM B3, B8 and B787
UL 44 and UL 854, ICEA S-95-658/NEMA WC-70
C(UL) US RW90 1kV:CSA/UL Listed
Federal spec. A-A-59544
Suitable for use in 105° C Dry System
RoHS Compliant
Specifications*:
Size: 350 MCM
Number of Strands: 37
Insulation Thickness (Conductor): 0.095 inches
Outside Diameter: 0.871 inches
Weight: 1.18 lbs per ft
Allowable Ampacity: 350 Amps at 90°C Wet/Dry
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Cable Type | XLP/USE-2 or RHH/RHW-2 |
Wire Size | 350 MCM |
# of Conductors | 1 Conductor |
Conductor Material | Bare Copper |
Stranded or Solid | Stranded |
O.D. (Inches) | 0.871 |
Ampacity | 350 |
Voltage | 600V |
Temp. Rating | 90°C |
Insulation Material | XLPE - Cross-linked Polyethylene |
Direct Burial | Yes |
Sunlight Resistant | Yes |
Location Use | Wet, Dry |
Indoor/Outdoor Use | Indoor, Outdoor |
Standards | UL Listed, c(UL) Listed, RoHS Compliant |
Features | Sunlight Resistant, Water Resistant, Oil & Gas Resistant, Heat Resistant, Moisture Resistant |
