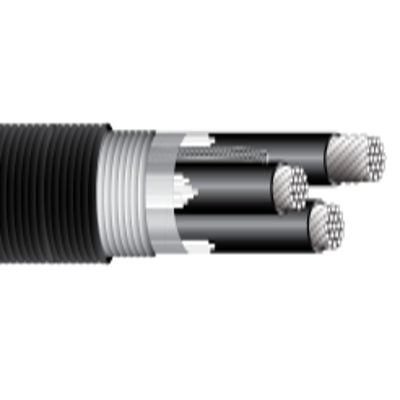

350 MCM 3C w/ Ground Aluminum Conductor Type MC Cable, PVC Jacket, Interlocked Armor Power Cable

SKU MCIAAC3503C
How will you purchase this wire?
9.130000 9.130000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

350 MCM 3C w/ Ground Aluminum Conductor Type MC Cable, PVC Jacket, Interlocked Armor Power Cable

Color Length (ft.) Price
Black

Length (ft.)

add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    350 MCM

  • # of Conductors

    3 Conductors w/ Ground

  • O.D. (Inches)

    1.8

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

350 MCM 3C w/ Ground, Type MC Cable w/ PVC Jacket
250 Amp UL Type MC
Aluminum Armor
Aluminum Conductors

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 2500'. Please call for longer put ups.

Color:
Black

Applications:
Suitable for use in branch, feeder and service power distribution under high ambient temperature in commercial, industrial,
institutional, casinos and multi-residential buildings; for power, lighting, control and signal circuits; in concealed or exposed
installations; direct burial; in environmental air-handling spaces per NEC 300.22; in places of assembly per NEC 518.4 and
theaters per NEC 520.5; in aerial applications when attached to a messenger; for installation in cable tray and approved
raceways; under raised floors for IT equipment per NEC 645.5(D) and 645.5(D)(2); Class I Div 2, Class II Div 2, Class III Div 1
hazardous locations.

Conductor:
Compact strand 8000 series aluminum alloy conductors.

Insulation:
Color coded cross-linked polyethylene XLP insulation. The cable ground is either bare or has green insulation. A binder tape is
wrapped over the conductor assembly.

Jacket:
An overall black polyvinyl chloride PVC jacket, which is heat, moisture and sunlight resistant.

Armor:
Overall Aluminum interlocked armor

Standards:
UL 44, UL 1569 for type MC ICEA S-95-658
NEMA WC70 Federal Spec A-A59544 (formerly J-C – 30B)
IEEEE 1202 70,000 BTU vertical flame test

Color Code:
3C - Black, White, Red, Bare ground
4C - Black, White, Red, Blue, Bare ground

Specifications*:

Size: 350 MCM
Number of Conductors: 3
Ground Wire Size: 2 AWG
Overall Diameter: 1.8 inches
Net Weight: 1.80 lbs per ft





*Data provided on this page is subject to change based on different manufacturers variances.
