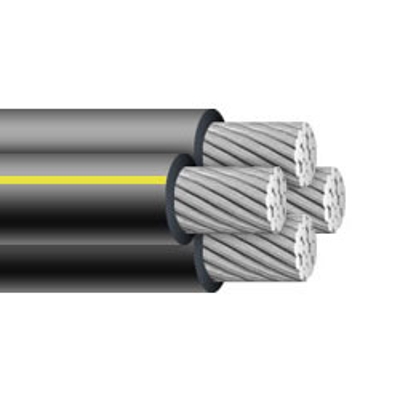

350, 350, 350 & 4/0 Slippery Rock Aluminum Quadruplex URD Direct Burial Cable
Product Details
Learn everything you want to know about this product to make an informed purchase350, 350, 350, & 4/0 Underground Secondary Distribution Cable
Color:
Black.
Description:
Underground Secondary Distribution Cables are twisted assemblies of alloy 1350 aluminum conductors insulated with cross-linked polyethylene. They are used in various underground applications in secondary distribution circuits.
Conductor:
Compressed Class B compressed stranded, 1350 series aluminum alloy.
Insulation:
Black cross-linked polyethylene (XLPE)
Assembly:
Phase conductors and neutral conductors are cabled together to form a twisted assembly.
Applicable Standards:
- UL 854: Service Entrance Cables
- ICEA S-105-692 Standard for 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables
350, 350, 350, & 4/0 Quadruplex URD Cable Specifications*:
Phase Conductor-Size: 350 MCM
Conductor Strand: 37
Neutral Conductor-Size: 4/0 AWG
Conductor Strand: 19
Insulation Thickness: 0.095 inches
Outside Diameter: 1.945 inches
Allowable Ampacity-Direct Burial: 385 Amps
Allowable Ampacity-In Duct: 305 Amps
Weight: 1.535 lbs per ft
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Wire Size | 350 MCM |
# of Conductors | 4 Conductors |
Conductor Material | Aluminum |
Stranded or Solid | Stranded |
O.D. (Inches) | 1.945 |
Ampacity | 385 |
Voltage | 600V |
Insulation Material | XLPE - Cross-linked Polyethylene |
Direct Burial | Yes |
Sunlight Resistant | Yes |
