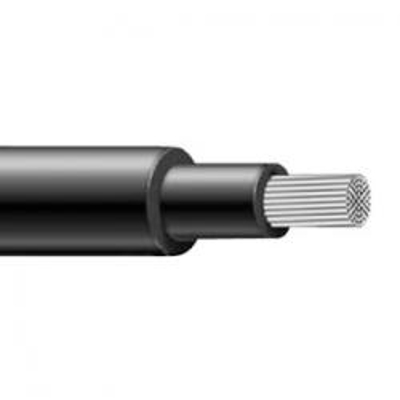

Diesel Locomotive Cable. Cut to length - sold by the Foot.
313 Diesel Locomotive Cable 2KV
Product DetailsLearn everything you want to know about this product to make an informed purchase
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.
DLO provides maximum performance. Tough enough to withstand daily abuse, temperature extremes and high-stress industrial environments. Diesel electric locomotives. For applications where flexible power leads must be installed in conduit or raceway. Motor leads.
90ºC temperature rating. Excellent impact and abrasion resistance. Resists oils, acids, alkalies, heat and flame. Flexible tinned copper stranding
A tough, polyamide, Nylon outer covering per UL-1063 and UL-83.
Accepted by MSHA for listing as flameresistant
10 AWG through 777.7 kcmil stranded tinned annealed bare copper per AAR 589
Premium grade 90ºC EPDM
Conductor Strand: 777/24
Insulation Thickness: 2.41 mm / 0.095 inches
Jacket Thickness: 1.65 mm / 0.065 inches
Outside Diameter: 26.92 mm / 1.06 inches
Weight: 1.26 lbs per ft
Allowable Ampacity: 515 Amps
*Data provided on this page is subject to change based on different manufacturers variances.
|Wire Size||313 MCM|
|# of Conductors||1 Conductor|
