300-4C MC Cable w/ Ground, Aluminum Conductors

SKU MCA300s4

$

14.024800

14.024800

/ft
How will you purchase this wire?
14.024800 14.024800
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

50 100 250 500 1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

300-4C MC Cable w/ Ground, Aluminum Conductors

Grouped product items
Color Length (ft.)
N/A Length 50 ft.
$701.24
N/A Length 100 ft.
$1,402.48
N/A Length 250 ft.
$3,506.20
N/A Length 500 ft.
$7,012.40
N/A Length 1000 ft.
$14,024.80
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Cable Type

    MC

  • Wire Size

    300 MCM

  • # of Conductors

    4 Conductors w/ Ground

  • Ground Size

    1AWG

  • Conductor Material

    Aluminum

  • Stranded or Solid

    Stranded

  • O.D. (Inches)

    2.11

  • Ampacity

    255

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

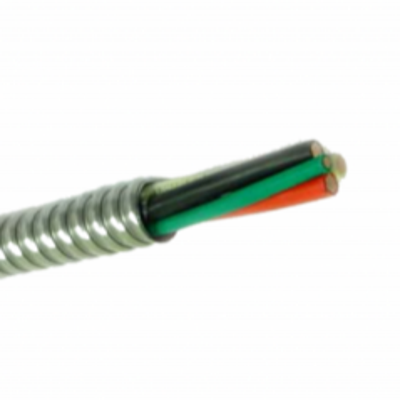

300-300-300-300-1 Metal Clad (MC) Cable with Ground, Aluminum Armored, Stranded Aluminum Conductors

***For Custom Lengths - Please Call 855-685-6369***

Applications:
Aluminum Conductor - Aluminum MC Cable is suitable for use in branch, feeder and service power distribution under high ambient temperature in commercial, industrial, institutional, casinos and multi-residential buildings; for power, lighting, control and signal circuits; in concealed or exposed installations; in environmental air-handling spaces per NEC 300.22; in places of assembly per NEC 518.4 and theaters per NEC 520.5; in aerial applications when attached to a messenger; for installation in cable tray and approved raceways; under raised floors for IT equipment per NEC 645.5(D) and 645.5(D)(2); Class I Div 2, Class II Div 2, Class III Div 1 hazardous locations.

Conductors:
Aluminum MC Cable has a compact strand 8000 series aluminum alloy conductors.

Insulation:
Aluminum MC Cable has color coded cross-linked polyethylene XHHW-2 or THHN/THWN-2 insulation. The cable ground is either bare or has green insulation. A binder tape is wrapped over the conductor assembly.

Armor:
Aluminum MC Cable has an overall aluminum interlocked armor.

Standards:
- UL 44, UL 1569 for type MC
- NEMA WC70
- IEEEE 1202 70,000 BTU vertical flame test
- ICEA S – 95-658
- Federal Spec A-A59544 (formerly J – C – 30B)

Specifications*:
Size: 300
Conductors: 4 + 1 Ground
Ground Size: 1 AWG
Outside Diameter: 2.110 inches
Weight: 1.81 lbs/ft
Ampacity: 255

*Data provided on this page is subject to change based on different manufacturers variances.
