$2.20 /ft.

In Stock

Type MTW Wire, Bare Copper Stranding. Cut to length - sold by the Foot.





Min: 10 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

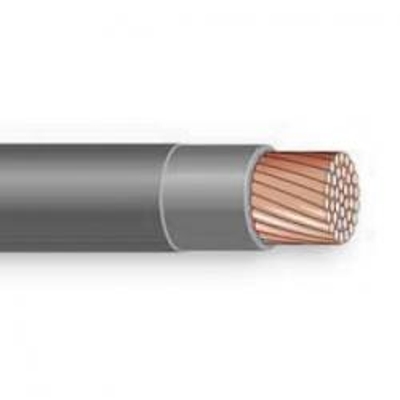

3 AWG, Type MTW/UL1283 Wire, 525 Strand

SKU
MTW3-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.

Applications:
Type conductors are primarily used in control cabinets, in machine tool applications and appliance wiring applications. Applications requiring Type MTW conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105°C in dry locations.

Bare Copper Stranding:
E315270 4 AWG (UL) MTW OR THHW OR BC-5W2 OR AWM 1015/1232/1283/1346 600V OR 1032/10269 1000V, VW-1---240954 CSA TEW 600V OR AWM 1 A/B 105C 1000V FT-1---SAE J1127 TYPE SGT

Specifications*:

Size: 3AWG
Number of Strands: 525
Temp: 105°C
Insulation Thickness: 0.060 inches
Outside Diameter: 0.420 inches

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Cable TypeMTW - Machine Tool Wire
Wire Size3 AWG
# of Conductors1 Conductor
Conductor MaterialBare Copper
O.D. (Inches)0.42
Insulation MaterialPVC - Polyvinyl Chloride
Direct BurialNo
