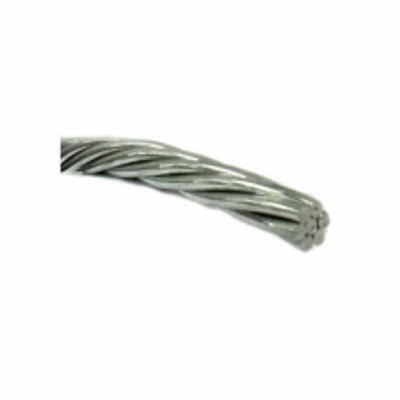

3/8 in 1 x 7 EHS Galvanized Steel Guy Wire

SKU GGW-3-8-7

$

0.880000

0.880000

/ft
How will you purchase this wire?
0.880000 0.880000
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

250 500 1000 5000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

3/8 in 1 x 7 EHS Galvanized Steel Guy Wire

Grouped product items
Color Length (ft.)
N/A Length 250 ft.
$220.00
N/A Length 500 ft.
$440.00
N/A Length 1000 ft.
$880.00
N/A Length 5000 ft.
$4,400.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    30 AWG

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

3/8 in 1 x 7 EHS Galvanized Steel Guy Wire

Applications:
Guy strand is used to add stability to a free-standing structure or tower. Overhead Ground Wire specification and 95% Zinc+ 5% Aluminum Mischmetal Alloy coating available upon request.

Standards:
Manufactured and inspected per ASTM A-475 and BS-183 Manufactured and inspected per A-855, ASTM A-363, A-92

Specifications*:

Strand Diameter Inches: 3/8"
Wires Per Strand: 7
Approximate Cable Weight: 273lbs per 1000ft

Minimum Breaking Strength In Pounds:
Utilities Grade: 11500 lbs
Siemens Martin Grade: 6950 lbs
High Strength Grade: 10800 lbs
Extra High Strength Grade: 15400 lbs

Zinc Coating: 100%

Minimum Weight of Coating OZ/SQ FT:
Class A: .85

*Data provided on this page is subject to change based on different manufacturers variances.
