3/0 Welding Cable Class K

SKU
WCK3s0-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

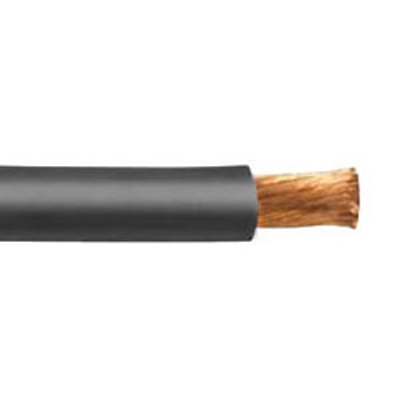

3/0 AWG Welding Cable Class K - Cut to length - Sold by the foot.
Minimum 1' to maximum 5000'. Please call for longer put ups

Colors Available:
Black, Red & Green

Applications:
Secondary voltage resistance welding leads. Power supply applications not exceeding 600 volts AC.

Also Known As:
Battery Cable, 3/0 Welding Lead, Temporary Power Cable, 3/0 Flexible Cable, 600 Volt Cable, 3/0 Copper Cable, 3/0 Welders Lead, Hurricane Cable, etc.

Features:
Good flexibility. Abrasion-resistant. Good color retention.

Jacket:
Premium-grade 90ºC EPDM, black, red, or green. Temperature range: -40ºC to +90ºC

Standards:
RoHS Compliant

Conductor:
Fully annealed stranded bare copper Class K

Specifications*:

Size: 3/0 AWG
Conductor Strand: 1586/30
Outside Diameter: 17.02 mm / 0.670 inches
Weight: 0.650 lbs per ft
Current Amps: 265 (For 600 Volt In-Line Applications)

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size3/0 AWG
# of Conductors1 Conductor
O.D. (Inches)0.67
Ampacity265
