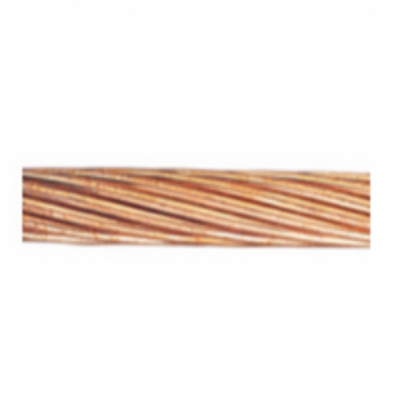

3/0 Soft Drawn, Stranded, Bare Copper Wire
$5.24 /ft.
Product Details
Learn everything you want to know about this product to make an informed purchase3/0 Soft Drawn Stranded Bare Copper.
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 5' to maximum 1000'. Please call for longer put ups.
Applications:
Stranded soft drawn bare copper is used for grounding.
Insulation:
Uninsulated
Jacket:
Unjacketed
Standards:
ASTM B-8=Concentric lay, Class B or Class C
Specifications*:
Size: 3/0
Number of Strands: 19
Outside Diameter: 0.470 inches
Weight: 0.518 lbs per ft
*Data provided on this page is subject to change based on different manufacturers variances.
| Stocked | Yes |
|---|---|
| Cable Type | Bare Copper |
| Wire Size | 3/0 AWG |
| # of Conductors | 1 Conductor |
| Conductor Material | Bare Copper |
| Stranded or Solid | Stranded |
| O.D. (Inches) | 0.47 |
