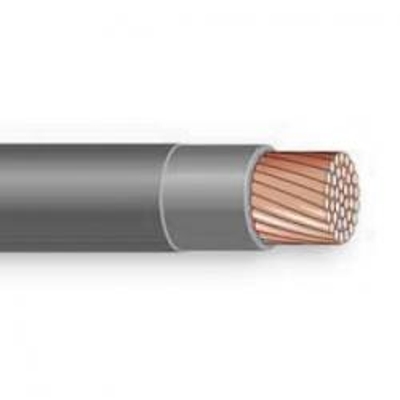

3/0 AWG Switchboard Wire Type SIS, 105 Strand, Tinned Copper, 100ft, 250ft, 500ft or 1000ft

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
100 ft.
200 ft.
250 ft.
500 ft
1000 ft
Add a length

 Free Shipping on all orders over $1000

3/0 SIS Wire, VW-1 Rated, 133 Strands, Tinned Copper, 100ft, 250ft, 500ft or 1000ft

SKU
SIS3s0

Product Details

Learn everything you want to know about this product to make an informed purchase

3/0 Switchboard Wire Type SIS, VW-1 Rated, Tinned Copper, 100ft, 250ft, 500ft or 1000ft

Applications:
Switchboard Wire is for use in switchboards for control and power circuits, for applications up to 90°C and 600 volts. 12 gauge and larger are approved for us by the power switchgear assemblies.

Conductors:
Switchboard Wire has a stranded soft drawn tinned coated copper conductor per ASTM B33, B174. (19 Strand Optional)

Insulation:
Switchboard Wire has cross-linked polyethylene insulation. Gray XLP (crosslinked polyethylene) is “Oil and Gasoline Resistant II” is standard. All black insulation is rated “Sunlight Resistant”.
Multple Colors Available.

Standards:
ASTM B-1, B-3, B-33, B-8, and B-174
UL 44 and UL83
NEC Article 384 and UL vertical flame test.


Specifications*:
Size: 3/0
Number of Strands: 133
Temp: 90°C in Wet & 105°C in Dry Locations
Insulation Thickness: 0.055 inches
Outside Diameter: 0.64 inches
Approx Weight: 586 lbs per 1000ft

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size3/0 AWG
O.D. (Inches)0.64
