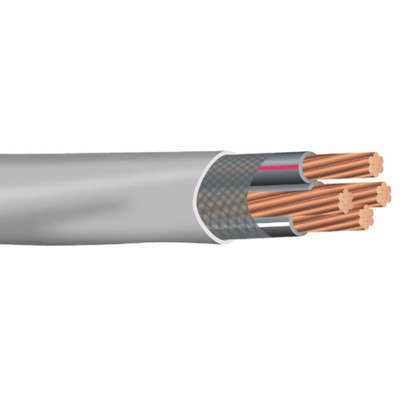

3/0, 3/0, 3/0 & 1/0 Copper SER Service Entrance Cable

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'.

Applications:
Type SE, Style SER Service Entrance may be used as service-entrance conductors and in other applications where SE cables are permitted when installed as specified by NEC® dry locations at temperatures up to 90°C.

Conductor:
Stranded conductors: Uncoated copper per ASTM-B3, ASTM-B8, and ASTM-B787

Phase Conductor:
Type THHN conductors Black PVC (polyvinyl chloride), rated to 90°C in wet or dry locations Jacketed with black nylon (polyamide) One phase conductor has a red stripe on its insulation surface for easy polarity identification.

Neutral Conductor:
White PVC (polyvinyl chloride), rated 90°C Jacketed with white nylon (polyamide)

Equipment Ground Conductor:
Bare stranded copper conductor

Jacket:
Gray, sunlight-resistant PVC (polyvinyl chloride) jacket over the complete assembly

Standards:
UL 83 (insulated conductors)
UL 854 Service Entrance Cables, File No. 11098
ASTM-B3
ASTM-B8
ASTM-B787
Federal Specification A-A-59544
NFPA70: National Electrical Code

Specifications*:

Insulated Conductor Size: 3/0
Bare Ground Size: 1/0 (19)
Outside Diameter: 1.462 inches
Ampacity amps 225 @ 90°C
Net Weight: 2.129 lbs/ft

*Data provided on this page is subject to change based on different manufacturers variances.
