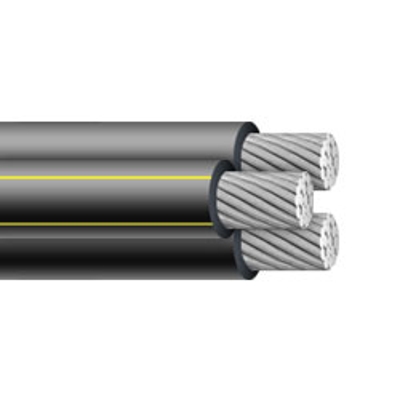

3/0, 3/0 & 1/0 Hollins Aluminum Triplex URD Direct Burial Cable

SKU
USD3s01s0-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

3/0, 3/0, & 1/0 Underground Secondary Distribution Cable

Color:
Black

Description:
Underground Secondary Distribution Cables are twisted assemblies of alloy 1350 aluminum conductors insulated with cross-linked polyethylene. They are used in various underground applications in secondary distribution circuits.

Conductor:
Compressed Class B compressed stranded, 1350 series aluminum alloy.

Insulation:
Black cross-linked polyethylene (XLPE)

Assembly:
Phase conductors and neutral conductors are cabled together to form a twisted assembly.

Applicable Standards:
- UL 854: Service Entrance Cables
- ICEA S-105-692 Standard for 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables

3/0, 3/0, & 1/0 Triplex URD Cable Specifications*:

Phase Conductor Size: 3/0
Phase Conductor Insulation Thickness: 0.080 inches
Neutral Conductor Size: 1/0
Neutral Conductor Insulation Thickness: 0.080 inches
Outside Diameter: 1.276 inches
Allowable Ampacity- Direct Burial:  280 Amps
Allowable Ampacity- In Duct:  205 Amps
Weight per Foot:  0.608 lbs

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size3/0 AWG
# of Conductors3 Conductors
Conductor MaterialAluminum
Stranded or SolidStranded
O.D. (Inches)1.276
Ampacity280
Voltage600V
Insulation MaterialXLPE - Cross-linked Polyethylene
Direct BurialYes
Sunlight ResistantYes
