$1,770.00 /sp.

In Stock

600 V Aluminum Alloy Conductor, UL recognized cross-linked Polyethylene Insulated Wire

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft Spool
1000 ft Spool
Add a length

 Free Shipping on all orders over $1000

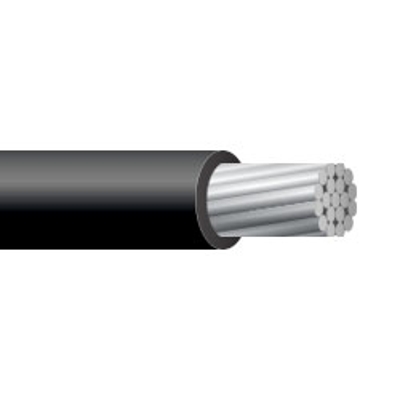

250 MCM Aluminum XLP/USE-2 Building Wire, 500ft or 1000ft Spool


Product Details

Learn everything you want to know about this product to make an informed purchase

Please call 855-880-8010 or email here for shorter lengths.

Approved for Direct Burial
600 V Aluminum Alloy Conductor, UL recognized cross-linked Polyethylene Insulation XLPE

USE-2 cables are primarily used for power distribution, in raceways in accordance with National Electrical Code, except that the cable is not rated for use in cable tray. USE-2 is approved for direct burial and for service entrance below ground. USE-2 cables may be used in wet or dry locations, with ambient temperatures not exceeding 90°C. Voltage rating for USE-2 cable is 600V

Applicable Standards:
USE-2 meets or exceeds the following standards
UL 44
Requirements of the National Electrical Code
ASTM standards B 800, B 801
Sunlight resistant

USE-2 conductor is a compact soft drawn bare 8000 series aluminum, with Class B stranding per ASTM

USE-2 has abrasion, heat and moisture resistant cross-linked polyethylene insulation XLPE


Size: 250 MCM
Number of Strands: 35
Insulation Thickness: 0.095 inches
Outside Diameter: 0.713 inches
Weight: 0.326 lbs per ft
Ampacity: 215 Amps at 30°C

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Cable TypeXLP/USE-2 or RHH/RHW-2
Wire Size250 MCM
# of Conductors1 Conductor
Conductor MaterialAluminum
Stranded or SolidStranded
O.D. (Inches)0.713
Temp. Rating-40°C ~ 90°C
Insulation MaterialXLPE - Cross-linked Polyethylene
Direct BurialYes
Sunlight ResistantYes
Location UseWet, Dry
Indoor/Outdoor UseIndoor, Outdoor
StandardsUL Listed, RoHS Compliant
