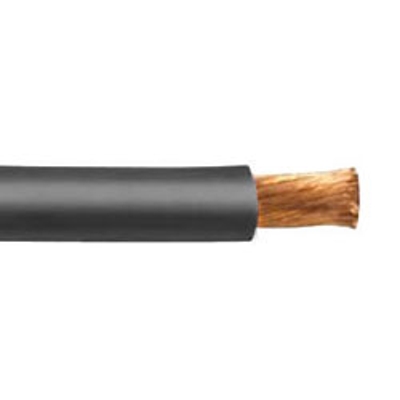

250 MCM Welding Cable Class K - Cut to length - Sold by the foot.
Minimum 1' to maximum 5000'. Please call for longer put ups
Secondary voltage resistance welding leads. Power supply applications not exceeding 600 volts AC.
Also Known As:
Battery Cable, 250MCM Welding Lead, Temporary Power Cable, 250MCM Flexible Cable, 600 Volt Cable, 250MCM Copper Cable, 250MCM Welders Lead, Hurricane Cable, etc.
Good flexibility. Abrasion-resistant. Good color retention.
Premium-grade 90ºC EPDM, black or red. Temperature range: -40ºC to +90ºC
Fully annealed stranded bare copper Class K
Size: 250 MCM
Conductor Strand: 2496/30
Outside Diameter: 21.08 mm / 0.830 inches
Weight: 1.054 lbs per ft
Current Amps: 445 (For 600 Volt In-Line Applications)
*Data provided on this page is subject to change based on different manufacturers variances.
