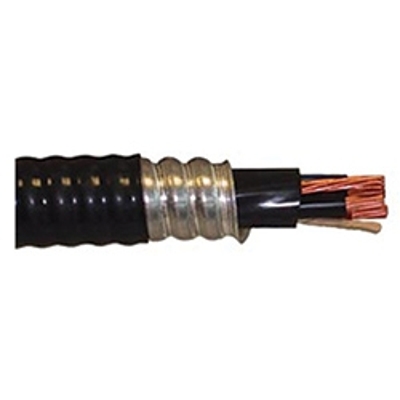

250-3C w/ Ground Teck 90 Cable, Aluminum Interlocked Armor, 1kV

250-3C w/ Ground Teck 90 Cable, Aluminum Interlocked Armor, 1kV
XLP insulation
Inner and outer PVC jackets

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 100'. Please call for longer put ups.

Color:
Black

Applications:
Teck 90 is for use in power, control and lighting circuits at industrial and chemical plants, pulp and paper mills, steel mills, mines, power generating facilities, food processing plants and commercial centers. Teck 90 is suitable for installation in wet or dry locations in troughs, trays and in direct burial applications. Teck 90 is for applications up to 1000 volts and temperatures from -40°C to +90°C.

Conductor:
Class B stranded, bare, soft copper

Insulation:
Cross-linked Polyethylene (XLPE)

Inner Jacket:
Black Polyvinyl Chloride (PVC)

Outer Jacket:
Black -40°C black polyvinyl chloride PVC outer jacket, which is water, chemical, sunlight and abrasion resistant

Grounding Conductor:
Bare stranded soft drawn copper

Armor:
Aluminum interlocked tape armor

Standards:
 The cable is certified to CSA C22.2 No. 131 Teck 90 cable and No. 174 for use in CSA Class 1, Division 1 hazardous locations (CSA HL rated) and passes the FT4 vertical tray flame test

Temperature:
 -40°C to 90°C

Voltage:
 1kV

Specifications*:

Size: 250 MCM
Number of Conductors: 3
Ground Wire Size: 4 AWG
Approx Diameter Inner Jacket: 1.970 inches
Approx Armor Diameter: 2.360 inches
Approx Diameter Outer Jacket: 2.490 inches
Net Weight: 3.825 lbs per ft


*Data provided on this page is subject to change based on different manufacturers variances.
