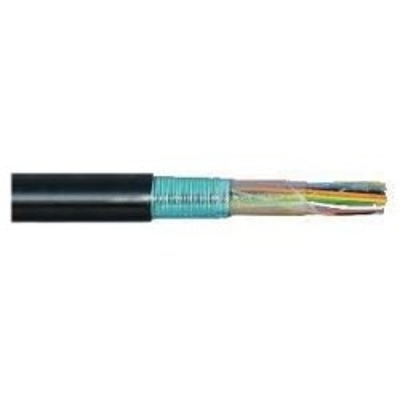

24 AWG 6 Pair Exchange Cable, PE-89, Foam Skin Shield, Direct Burial

Min: 40 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

24 AWG 6 Pair Direct Burial Telephone Cable, Outside Plant, Type PE-89

SKU
EC246PR-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

24 AWG 6 Pair Exchange Cable, RUS/REA PE-89, Foam Skin Shield, Direct Burial

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

Minimum 100' to maximum 1000'. Please call for longer put ups.

Color:
Black

Applications:
For use in exchange and campus areas, direct buried or installed in-duct. Suitable for voice frequency use on all pairs and carrier frequency, both analog and digital, on a selected pair assignment basis. For full pair utilization at carrier frequencies, a core-dividing screen is required.

Standards:.
ANSI ICEA 7CFR-1755-890

Conductor:
Solid, annealed, bare copper conductors

Insulation:
Conductor insulation is foamed polyolefin with a solid skin of the same material. Color-coded to telephone industry standards
IInsulated conductors are twisted into pairs of varying lengths of lay to minimize crosstalk

Jacket:
Black polyethylene jacket which is sequentially printed with footage marker at regular intervals
The cable core is filled with a waterproofing compound and wrapped with a non-hygroscopic core tape
A flooding compound is applied over the core and to all surfaces of the shield/armor to resist moisture entry and corrosion

Pairs:
Pairs are stranded into units (and super units, if required by pair count)

Standard Cables:
A 0.008 in. coated aluminum black polyethylene (SEALPIC-FSF)

Specifications*:

Size: 24 AWG
Number of Pairs: 6
Outside Diameter: 0.360 inches
Weight: 0.061 lbs per ff

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size24 AWG
# of Conductors12 Conductors
# of Pairs6 Pair
O.D. (Inches)0.36
Direct BurialYes
