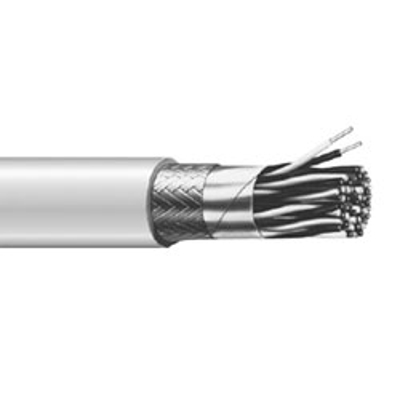

24 AWG, 1 Pair, Computer Cable, Foil/Braid Shield, Lo-Cap, 250ft, 500ft or 1000ft Spool
Product Details
Learn everything you want to know about this product to make an informed purchase
Specifications
-
Wire Size
24 AWG
-
# of Conductors
2 Conductors
-
# of Pairs
1 Pair
-
O.D. (Inches)
0.235
-
Alt to Belden #
9841
More information
General C0841A, UL 2919, NEC Type CM (UL) c(UL) CMH
Color:
Gray
Applications:
Computers - Industrial equipment - Data transmission - Control circuits - Low capacitance requirements - Suitable for EIA RS-485 applications - Suggested voltage rating: 30 volts
Compliances:
NEC Article 800 Type CM/CMH (UL: 75°C, 300 V)
UL Style 2919 (UL: 80ËšC, 30 V)
RoHS Compliant Directive 2011/65/EU
Designed to meet UL 70,000 BTU Vertical Tray Flame Test
Passes CSA CMH Flame Test
CE: Low Voltage Directive (LVD) 2006/95/EC
Assists system designers in meeting FCC Docket 20789 demands
Conductor:•
24 AWG fully annealed stranded tinned copper per ASTM B33. Twisted pairs
Insulation:
Premium-grade, coIor-coded polyethylene
Shield:
100% Flexfoil® aluminum/polyester with 25% overlap, minimum, foil facing out.
Stranded tinned copper drain wire
90% tinned copper braid
Jacket:•
PVC, gray • Temperature range: -20ËšC to +80ËšC
Color Code:•
1 pair = Black paired with Red
Specifications*:
Size: 24 AWG
Number of Pairs: 1
Conductor Stranding: 7/30
Nominal Insulation Thickness: 0.024 inches
Nominal Jacket Thickness: 0.032 inches
Outside Diameter: 0.235 inches
Nomonal DCR: Cond.-25.7, Shield-2.9
Nomonal Cap. pF/ft: A-14.6, B-26.2
Spec Sheet
View Spec Sheet for Complete Details (PDF)
