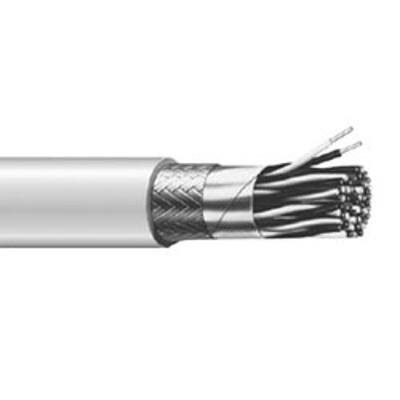

Belden 9841 equals General C4841A, UL 2919, NEC Type CM (UL) c(UL) CMH

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft. Spool
1000 ft Spool
Add a length

 Free Shipping on all orders over $1000

24 AWG, 1 Pair, Computer Cable, Foil/Braid Shield, 500ft or 1000ft Spool

SKU
COMC4841A

Product Details

Learn everything you want to know about this product to make an informed purchase

Belden 9841 equals General C4841A, UL 2919, NEC Type CM (UL) c(UL) CMH

A Cost-Effective Alternative to Belden
If you need cable and wire that matches Belden specifications without needing to be Belden brand, we can save you money. Our Belden equivelents are produced under the highest quality standards for extrusion, cabling, twisting, shielding and jacketing -- equivelent to Belden in every way except for the price.

Color:
Gray

Applications:
Computers - Industrial equipment - Data transmission - Control circuits - Low capacitance requirements - Suitable for EIA RS-485 applications - Suggested voltage rating: 30 volts

Compliances:
NEC Article 800 Type CM/CMH (UL: 75°C, 300 V)
UL Style 2919 (UL: 80˚C, 30 V)
RoHS Compliant Directive 2011/65/EU
Designed to meet UL 70,000 BTU Vertical Tray Flame Test
Passes CSA CMH Flame Test
CE: Low Voltage Directive (LVD) 2006/95/EC
Assists system designers in meeting FCC Docket 20789 demands

Conductor:
24 AWG fully annealed stranded tinned copper per ASTM B33. Twisted pairs

Insulation:
Premium-grade, coIor-coded polyethylene

Shield:
100% Flexfoil® aluminum/polyester with 25% overlap, minimum, foil facing out.
Stranded tinned copper drain wire
90% tinned copper braid

Jacket:
PVC, gray • Temperature range: -20˚C to +80˚C

Color Code:
1 pair = Black paired with Red

Specifications*:

Size: 24 AWG
Number of Pairs: 1
Conductor Stranding: 7/30
Nominal Insulation Thickness: 0.024 inches
Nominal Jacket Thickness: 0.032 inches
Outside Diameter: 0.235 inches
Nomonal DCR: Cond.-25.7, Shield-2.9
Nomonal Cap. pF/ft: A-14.6, B-26.2



More Information
Wire Size24 AWG
# of Conductors2 Conductors
# of Pairs1 Pair
O.D. (Inches)0.235
Alt to Belden #9841
ShieldedYes
Shield TypeFoil + Braid(s)
