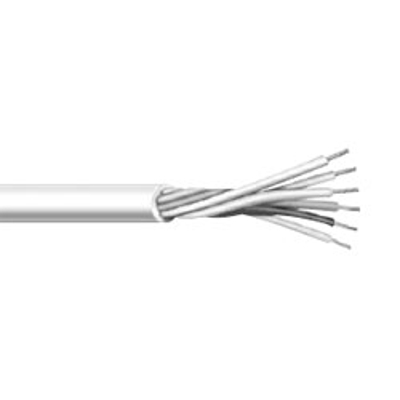

Belden 8444 equals General C4063A, UL 2464, UL 2576, NEC Type CM, CSA CMG
Product Details
Learn everything you want to know about this product to make an informed purchaseBelden 8444 equals General C4063A, UL 2464, UL 2576, NEC Type CM (UL) c(UL), CSA CMG
A Cost-Effective Alternative to Belden
If you need cable and wire that matches Belden specifications without needing to be Belden brand, we can save you money. Our Belden equivelents are produced under the highest quality standards for extrusion, cabling, twisting, shielding and jacketing -- equivelent to Belden in every way except for the price.
Color:
Gray
Applications:
Public address systems, Intercoms, Internal telephones, Remote control circuits, Suitable for EIA RS-232 applications, Suggested voltage rating: 300 volts
Compliances:
- NEC Article 800 Type CM (UL: 75°C)
- UL Style 2464 (UL: 80°C, 300V)
- UL Style 2576 (UL: 80°C, 150V)
- CSA CMG (CSA 60°C)
- RoHS Compliant Directive 2002/95/EC
- Designed to meet UL 70,000 BTU
- Vertical Tray Flame Test
- Passes CSA CMG Flame Test
Conductor:
Fully annealed, stranded tinned copper per ASTM B-33
Insulation:
Premium-grade, coIor-coded S-R PVC per UL 1061
Jacket:
PVC, gray
-20°C to +80°C
Specifications*:
Size: 22 AWG
Number of Conductors: 4
Conductor Stranding: 7/30
Nominal Insulation Thickness: 0.010 inches
Nominal Jacket Thickness: 0.032 inches
Outside Diameter: 0.189 inches
Nomonal C-C Cap. pF/ft: 24.5
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Wire Size | 22 AWG |
# of Conductors | 4 Conductors |
O.D. (Inches) | 0.189 in. |
Alt to Belden # | 8444 |
Shielded | No |
Shield Type | Unshielded |
