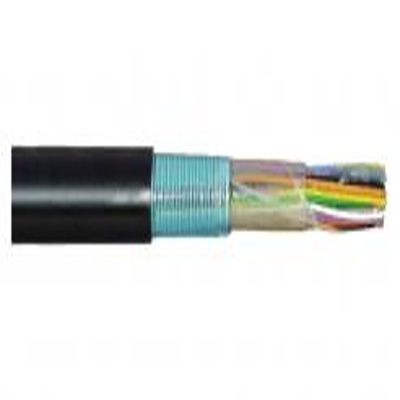

22 AWG 25 Pair Direct Burial Type PE-39 Telephone Cable, Outside Plant, RUS/REA
Product Details
Learn everything you want to know about this product to make an informed purchase
Specifications
-
Wire Size
22 AWG
-
# of Conductors
50 Conductors
-
# of Pairs
25 Pair
-
O.D. (Inches)
0.7
-
Direct Burial
Yes
More information
22 AWG 25 Pair Direct Burial Type PE-39 Telephone Cable, Outside Plant, RUS/REA
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 100' to maximum 5000'. Please call for longer put ups.
Color:
Black
Applications:
For use in exchange and campus areas, direct buried or installed in-duct. Suitable for voice frequency use on all pairs and carrier frequency, both analog and digital, on a selected pair assignment basis. For full pair utilization at carrier frequencies, a core-dividing screen is required.
Standards:
ANSI ICEA 7CFR-1755-390
Conductor:
Solid, annealed, bare copper conductors
Insulation:
Solid polyolefin insulation, color-coded to telephone industry standards
Insulated conductors are twisted into pairs of varying lengths of lay to minimize crosstalk
Jacket:
Black polyethylene jacket which is sequentially printed with footage marker at regular intervals
Pairs:
Pairs are stranded into units (and super units, if required by pair count)
Specifications*:
Size: 22 AWG
Number of Pairs: 25
Outside Diameter: 0.700 inches
Weight: 0.255 lbs per ff
*Data provided on this page is subject to change based on different manufacturers variances.
