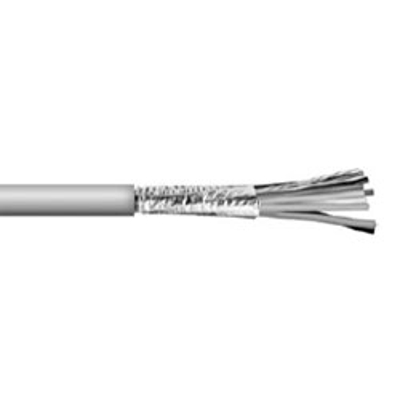

22 AWG, 25 Conductor, Computer Cable, Foil Shield, 500ft or 1000ft Spool
Product Details
Learn everything you want to know about this product to make an informed purchase
Specifications
-
Wire Size
22 AWG
-
# of Conductors
25 Conductors
-
O.D. (Inches)
0.333
-
Shielded
Yes
-
Shield Type
Overall Foil Shield
More information
General Cable C0768A, UL 2464, NEC Type CMR (UL) c(UL), CSA CMG
Color:
Gray
Applications:
Computer interconnections, Data transmission, Control circuits, Industrial equipment control, Suitable for EIA RS-232 applications, Suggested voltage rating: 300 volts
Compliances:
- NEC Article 800 Type CMR (UL: 75°C)
- UL Style 2464 (UL: 80°C, 300V)
- CSA CMG (CSA: 60°C)
- RoHS Compliant Directive 2002/95/EC
- Designed to meet UL 70,000 BTU Vertical Tray Flame Test
- Passes CSA CMH Flame Test
Conductor:
Fully annealed, stranded tinned copper per
Insulation:
Semi-Rigid Polyvinyl Chloride (S-R-PVC)
Shield:
100% aluminum/polyester, 25% overlap, foil facing out, Stranded tinned copper drain wire
Jacket:
PVC, gray
-20°C to +80°C
Specifications*:
Size: 22 AWG
Number of Conductors: 25
Conductor Stranding: 7/32
Nominal Insulation Thickness: 0.010 inches
Nominal Jacket Thickness: 0.032 inches
Outside Diameter: 0.333 inches
Nomonal Cap. pF/ft: A-30.0, B-55.0
*Data provided on this page is subject to change based on different manufacturers variances.
