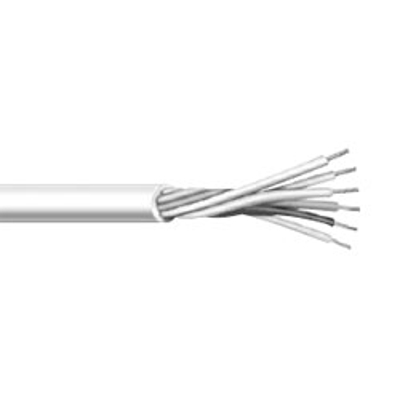

22 AWG, 2 Conductor, Communication Cable, Unshielded, 500ft or 1000ft Spool

SKU COMC6348A

$

0.169200

0.169200

/ft
How will you purchase this wire?
0.169200 0.169200
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

500 1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

22 AWG, 2 Conductor, Communication Cable, Unshielded, 500ft or 1000ft Spool

Grouped product items
Color Length (ft.)
Gray Length 500 ft.
$84.60
Gray Length 1000 ft.
$169.20
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    22 AWG

  • # of Conductors

    2 Conductors

  • O.D. (Inches)

    0.13 in.

  • Alt to Belden #

    8442

  • Shielded

    No

  • Shield Type

    Unshielded

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Belden 8442 equals General C6348A, UL 2464, UL 2576, NEC Type CM (UL) c(UL), CSA CMG

A Cost-Effective Alternative to Belden
If you need cable and wire that matches Belden specifications without needing to be Belden brand, we can save you money. Our Belden equivalents are produced under the highest quality standards for extrusion, cabling, twisting, shielding and jacketing -- equivelent to Belden in every way except for the price.

Color:
Gray

Applications:
Public address systems, Intercoms, Internal telephones, Remote control circuits, Suitable for EIA RS-232 applications, Suggested voltage rating: 300 volts

Compliances:
- NEC Article 800 Type CM (UL: 75°C)
- UL Style 2464 (UL: 80°C, 300V)
- UL Style 2576 (UL: 80°C, 150V)
- CSA CMG (CSA 60°C)
- RoHS Compliant Directive 2002/95/EC
- Designed to meet UL 70,000 BTU
- Vertical Tray Flame Test
- Passes CSA CMG Flame Test

Conductor:
Fully annealed, stranded tinned copper per ASTM B-33

Insulation:
Premium-grade, coIor-coded S-R PVC per UL 1061

Jacket:
PVC, gray
-20°C to +80°C

Specifications*:

Size: 22 AWG
Number of Conductors: 2
Conductor Stranding: 7/30
Nominal Insulation Thickness: 0.010 inches
Nominal Jacket Thickness: 0.015 inches
Outside Diameter: 0.130 inches
Nomonal C-C Cap. pF/ft: 24.5

*Data provided on this page is subject to change based on different manufacturers variances.
