$505.00

In Stock

Belden 82442 Equal - NEC Type CMP (UL) c(UL)

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft. Spool
1000 ft Spool
Add a length

 Free Shipping on all orders over $1000

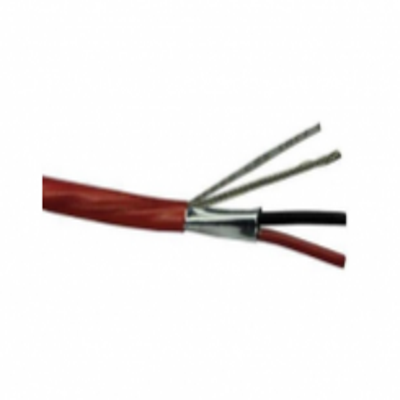

22 AWG, 1 Pair, Plenum FEP Jacket Unshielded Cable

SKU
BELEQ82442

Product Details

Learn everything you want to know about this product to make an informed purchase

Belden 82442 Equal

A Cost-Effective Alternative to Belden
If you need cable and wire that matches Belden specifications without needing to be Belden brand, we can save you money. Our Belden equivelents are produced under the highest quality standards for extrusion, cabling, twisting, shielding and jacketing -- equivelent to Belden in every way except for the price.

Product Description:
Solid FEP insulated stranded tinned copper conductors with an overall jacket. Shielded version has an aluminum tape and drain wire.

Color:
Red

Applications:
Security Systems
Intercom Systems
Sound/Audio System
Power-Limited Controls
Suggested voltage rating: 300 volts

Compliances:
RoHS Compliant Cables are manufactured to meet current NEC guidelines and are verifed by outside standards organizations including c(UL)us and c(ETL)us.

Conductor:
22 AWG Stranded Tinned Copper Twisted Pair

Insulation:
Solid FEP

Specifications:

Size: 22 AWG
Number of Pairs: 1
Conductor Stranding: 7
Nominal Jacket Thickness: 0.015 inches
Outside Diameter: 0.118 inches






More Information
StockedYes
Wire Size22 AWG
# of Conductors2 Conductors
# of Pairs1 Pair
O.D. (Inches)0.118
Alt to Belden #82442
ShieldedNo
Shield TypeUnshielded
