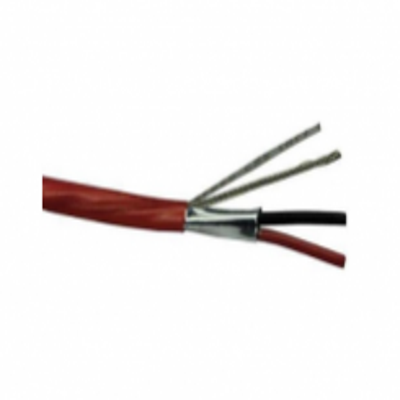

22 AWG, 1 Pair, Communication Cable, FEP Jacket, Foil Shielded, 250ft, 500ft or 1000ft Spool

SKU COMC8109
How will you purchase this wire?
1.376160 1.376160
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

250 500 1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

22 AWG, 1 Pair, Communication Cable, FEP Jacket, Foil Shielded, 250ft, 500ft or 1000ft Spool

Grouped product items
Color Length (ft.)
Red Length 250 ft.
Red Length 500 ft.
Red Length 1000 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    22 AWG

  • # of Conductors

    2 Conductors

  • # of Pairs

    1 Pair

  • O.D. (Inches)

    0.122

  • Alt to Belden #

    88761

  • Shielded

    Yes

  • Shield Type

    Overall Foil Shield

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Belden 88761 equals General C8109,NEC Type CMP (UL) c(UL)

A Cost-Effective Alternative to Belden
If you need cable and wire that matches Belden specifications without needing to be Belden brand, we can save you money. Our Belden equivelents are produced under the highest quality standards for extrusion, cabling, twisting, shielding and jacketing -- equivelent to Belden in every way except for the price.

Color:
Red

Applications:
Computer systems
Remote control circuits
Process control and instrumentation
Suggested voltage rating: 300 volts

Compliances:
NEC Article 800
Designed to meet NFPA 262 and CSA FT6 Steiner Tunnel Fire Tests for Plenum Applications

Conductor:
22 and 18 AWG fully annealed stranded tinned copper per ASTM B33
Twisted pairs

Insulation:
Premium-grade, coIor-coded FEP

Separator:
Polyester tape with 25% overlap

Shield:
100% Flexfoil® aluminum/polyester foil with 25% overlap, minimum
Stranded tinned copper drain wire

Jacket:
FEP, Red
Temperature range: -100°C to +200°C

Specifications*:

Size: 22 AWG
Number of Pairs: 1
Conductor Stranding: 19/30
Nominal Insulation Thickness: 0.006 inches
Nominal Jacket Thickness: 0.016 inches
Outside Diameter: 0.122 inches
Nomonal Cap. pF/ft: A-35.0, B-65.0
