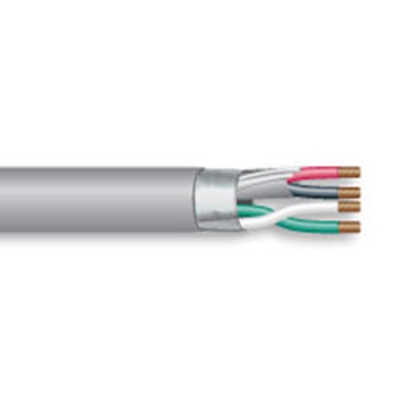

22-6C CMR Riser, Security Cable, Stranded, Shielded

SKU
CMR226CS

Product Details

Learn everything you want to know about this product to make an informed purchase

Multi-Conductor, Shielded, Riser Security Cable, CMR Cable

Color:
Gray

Applications:
Access control, Video Surveillance/CCTV, Intercom, Security, Home THeater and Burglar Alarms.

Compliances:
- CL3R Cable: NEC Article 725 Type CL3R Cable (UL: 75°C, 150V)
- CMR Cable: NEC Article 800 Type CMR Cable (UL: 75°C, 300V)

Conductor:
Stranded, bare copper to ASTM B3, B8, and B286

Insulation:
Premium-grade, color-coded S-R-PVC

Shield:
- Overall polyester supported aluminum foil
- Stranded tinned copper drain wire

Jacket:
Gray Premium-grade Polyvinyl Chloride (PVC)
-20°C to +75°C Includes ripcord

Specifications*:

Size: 22 AWG
Number of Conductors: 6
Conductor Stranding: 7/30
Nominal Insulation Thickness: 0.008 inches
Nominal Jacket Thickness: 0.015 inches
Outside Diameter: 0.164 inches

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size22 AWG
# of Conductors6 Conductors
O.D. (Inches)0.164
