22/3P Shielded + 18/4 +22/4 + 22/2 Access Control Composite Cable, Overall Riser Rated Jacket
$
0.737500
0.737500
/ftProduct Details
Learn everything you want to know about this product to make an informed purchase
Specifications
-
Wire Size
22 AWG
-
O.D. (Inches)
0.433
More information
Construction:

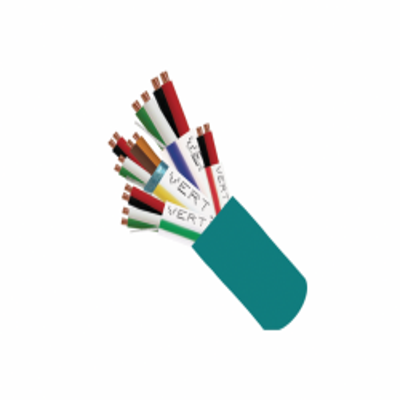

22 AWG, 3 Pair Shielded + 18 AWG, 4 Conductor + 22 AWG, 4 Conductor + 22 AWG, 2 Conductor Access Control Cable, Overall Riser Rated Jacket, 500ft Spool
Applications:
Access Control Panels, Security Panels, Card Readers, Sensors, Keypads, Power, Microphones, Speakers, Alarm Systems
Specifications*:
Overall Cable Assembly:
Voltage: 300V
Overall Diameter: 0.433 Inches
Temp Rating: -20ËšC to 75ËšC
Conductors: Stranded Bare Copper
Insulation: Polyvinyl Chloride (PVC)
Shielding: Foil Shield, Stranded Tinned Copper Drain Wire
Jacket: Polyvinyl Chloride (PVC)
Jacket Color: Green
Rip Cord: Nylon
NEC Rating: ETL Listed, CMR, FT4, CL3R, RoHs Compliant
Component 1
Size: 22 AWG
Number of Pairs: 3
Construction: 22AWG Stranded Bare Copper
Component 2
Size: 18 AWG
Number of Conductors: 4
Construction: 18AWG Stranded Bare Copper
Component 3
Size: 22 AWG
Number of Conductors: 4
Construction: 22AWG Stranded Bare Copper
Component 4
Size: 22 AWG
Number of Conductors: 2
Construction: 22AWG Stranded Bare Copper
*Data provided on this page is subject to change based on different manufacturers variances.
