In Stock
500ft or 1000ft Spool
Product Details

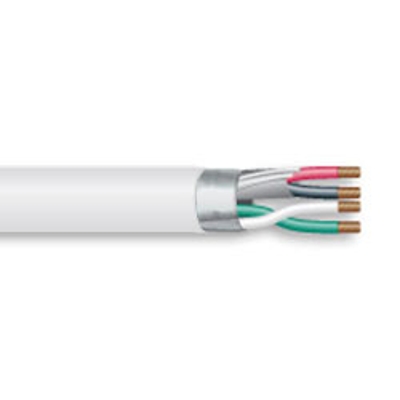

Learn everything you want to know about this product to make an informed purchase22/2C Multi-Conductor, Shielded, Plenum Security Cable, CMP Cable
Color:
White
Applications:
Access control, Video Surveillance/CCTV, Intercom, Security System, Sound Audio Systems, Home Theater and Burglar Alarms.
Compliances:
- CL3P Cable: NEC Article 725 Type CL3P Cable (UL: 75°C, 150V)
- CMP Cable: NEC Article 800 Type CMP Cable (UL: 75°C, 300V)
Conductor:
Stranded, bare copper to ASTM B3, B8, and B286
Insulation:
Premium-grade, color-coded PVC
Shield:
- Overall polyester supported aluminum foil
- Stranded tinned copper drain wire
Jacket:
White Premium-grade PVC
0°C to +75°C
Specifications*:
Size: 22 AWG
Number of Conductors: 2
Conductor Stranding: 7
Nominal Jacket Thickness: 0.018 inches
Outside Diameter: 0.132 inches
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Wire Size | 22 AWG |
# of Conductors | 2 Conductors |
O.D. (Inches) | 0.132 |
